Description | The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. |

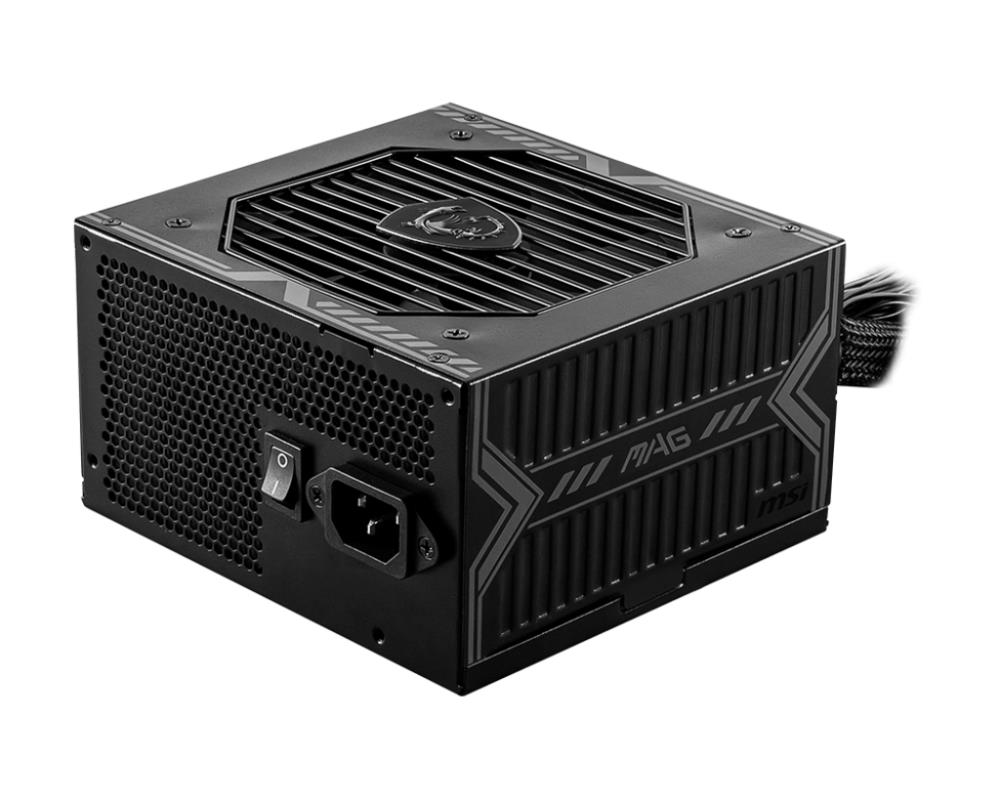

Summary | MSI MAG A750BN PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Package width: 150 mm, Package depth: 140 mm, Package height: 86 mm |
Vendor Homepage | https://www.msi.com/Power-Supply/MAG-A750BN-PCIE5/Overview |
Category Code | PSU |
CnCode | 85044095 |
Unit Box Height | 0.21 |
Unit Box Length | 0.29 |
Unit Box Width | 0.125 |
AC input frequency | 50/60 |
AC input voltage | 100 - 240 |
Combined power (+12V) | 750 |
Combined power (+3.3V) | 120 |
Combined power (+5V) | 120 |
Combined power (+5Vsb) | 12.5 |
Combined power (-12V) | 3.6 |
Efficiency | 85 |
Max output current (+12V) | 62.5 |
Max output current (+3.3V) | 20 |
Max output current (+5V) | 20 |
Max output current (+5Vsb) | 2.5 |
Max output current (-12V) | 0.3 |
Maximum input current (@110V) | 10 |
Maximum input current (@220V) | 5 |
Power Factor Correction (PFC) type | Active |
Power protection features | Over current/Over power/Over voltage/Short circuit |
Total power | 750 |
ATX Power connector (24-pin) | Yes |
Cabling type | Non-Modular |
EPS power connector (4+4 pin) | Yes |
Floppy drive power connector | 1 |
Motherboard power connector | 24-pin ATX |
Number of SATA power connectors | 5 |
PCI Express power connectors (16-pin) | 1 |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power connectors (4-pin) | 2 |
80 PLUS certification | 80 PLUS Bronze |
