Description | MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
|

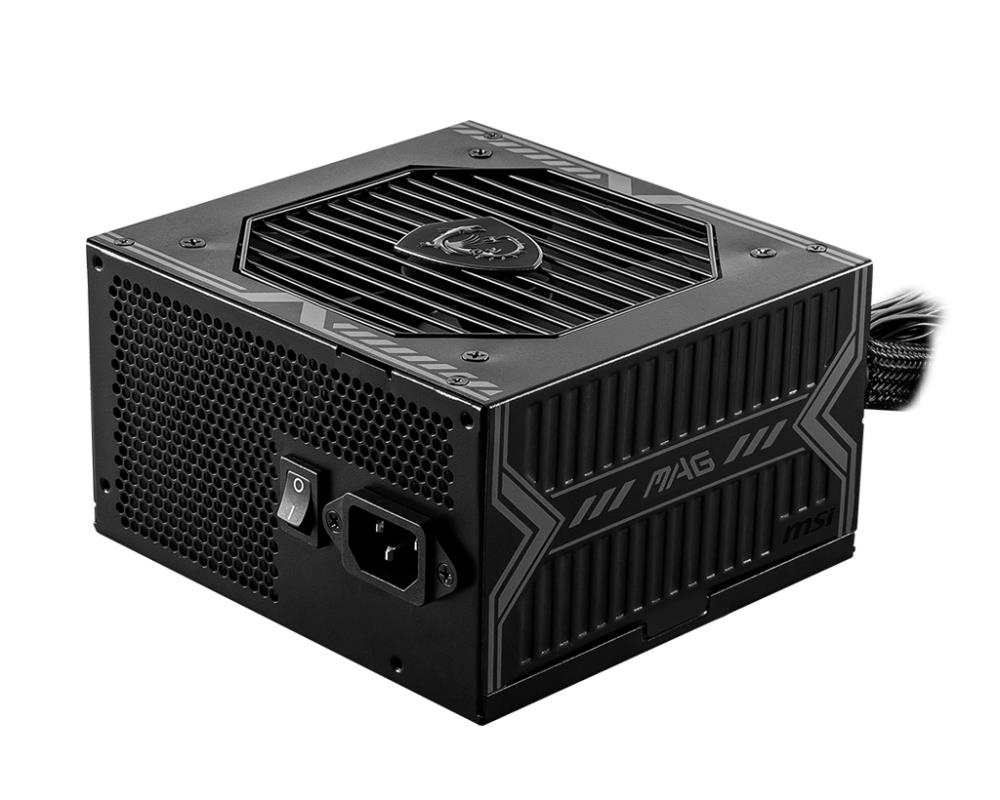

Summary | MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
Vendor Homepage | https://www.msi.com/Power-Supply/MAG-A550BN/Overview |
Category Code | PSU |
CnCode | 85044095 |
Unit Box Height | 0.19 |
Unit Box Length | 0.25 |
Unit Box Width | 0.11 |
AC input frequency | 50 - 60 |
AC input voltage | 100 - 240 |
Combined power (+12V) | 546 |
Combined power (+3.3V) | 110 |
Combined power (+5V) | 110 |
Combined power (+5Vsb) | 12.5 |
Combined power (-12V) | 3.6 |
Efficiency | 85 |
Max output current (+12V) | 45.5 |
Max output current (+3.3V) | 20 |
Max output current (+5V) | 20 |
Max output current (+5Vsb) | 2.5 |
Max output current (-12V) | 0.3 |
Maximum input current (@110V) | 8 |
Maximum input current (@220V) | 4 |
Power Factor Correction (PFC) type | Active |
Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit |
Total power | 550 |
ATX power connector (20+4 pin) | No |
ATX Power connector (24-pin) | No |
Cabling type | Non-Modular |
CPU power connector (4+4 pin) | Yes |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | No |
Floppy disk drive connector | Yes |
Floppy drive power connector | 1 |
Motherboard power cable length | 600 |
Motherboard power connector | 20+4 pin ATX |
