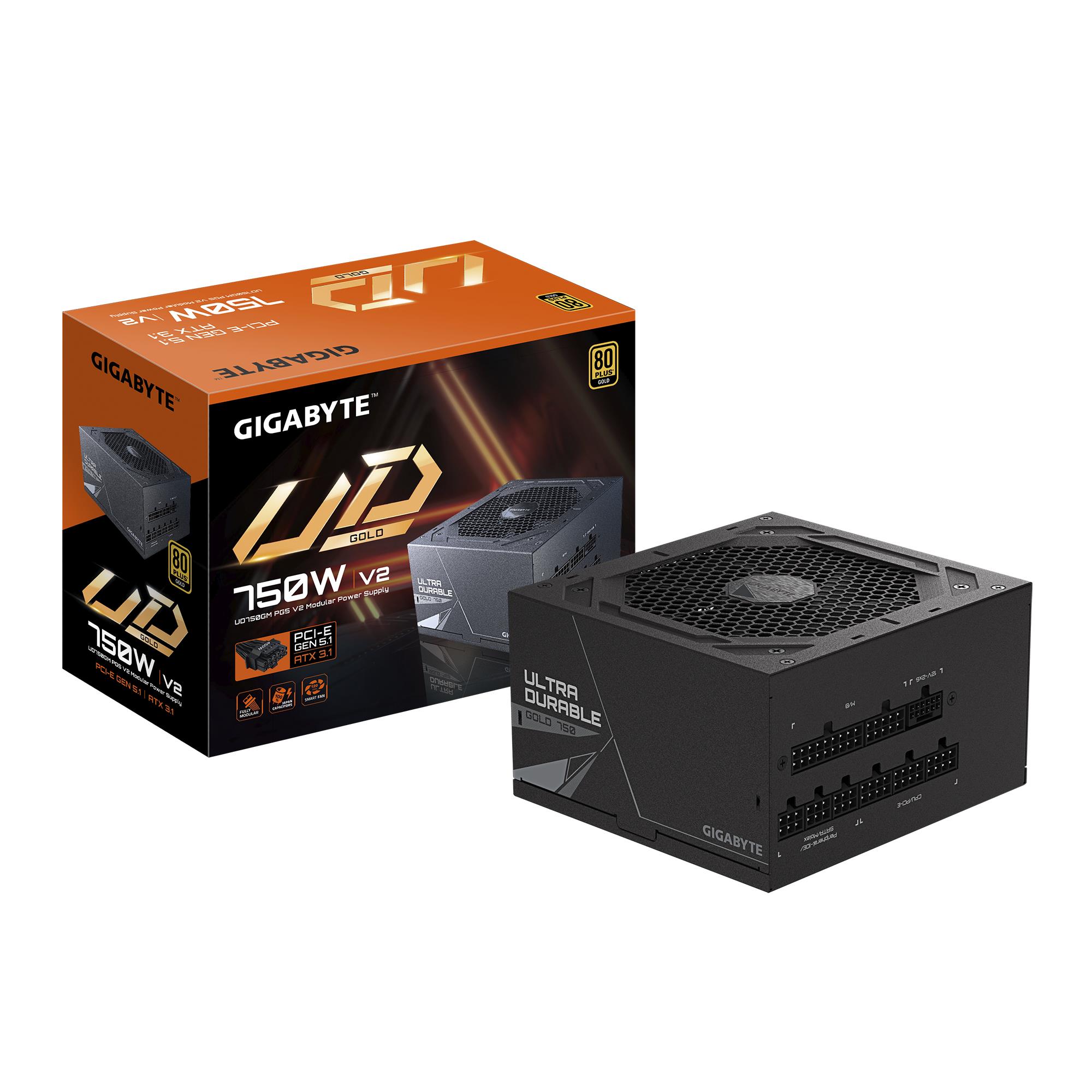

Power Supply GIGABYTE UD750GM PG5 V2 ATX 3.1 750 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD750GMPG5V2
GP-UD750GM PG5 V2
Out of stock
Estimated Delivery: Up to 2-3 business days
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
| Description | Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
|
| Summary | GIGABYTE UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Vendor Homepage | https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-V2#kf |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.215 |
| Unit Box Length | 0.255 |
| Unit Box Width | 0.115 |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Combined power (+12V) | 750 |
| Combined power (+3.3V) | 105 |
| Combined power (+5V) | 105 |
| Combined power (+5Vsb) | 15 |
| Combined power (-12V) | 3.6 |
| Efficiency | 90 |
| Hold time | 16 |
| Input current | 12 - 6.5 |
| Max output current (+12V) | 62.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 3 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 750 |
| Cabling type | Fully-Modular |
| CPU power cable length | 650 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 610 |
| Motherboard power connector | 20+4 pin ATX |
| Number of EPS connectors | 2 |
| Number of SATA power connectors | 8 |
| PCI Express connector | Yes |
