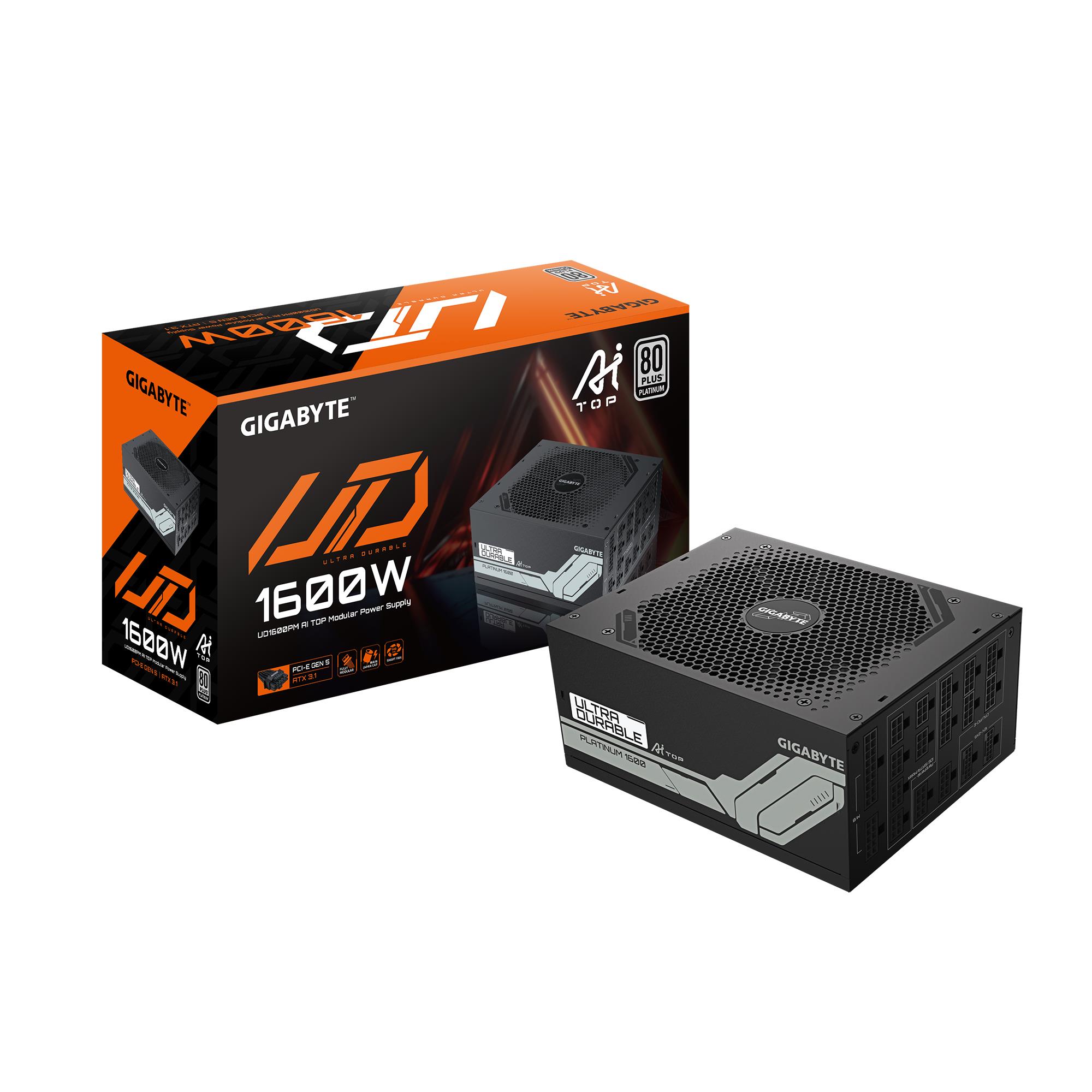

Power Supply GIGABYTE GP-UD1600PM PG5 1600 Watts Efficiency 80 PLUS PLATINIUM PFC Active GP-UD1600PMPG5

330€

1600 W | 100 – 240 V | Efficiency 92 % | 80 PLUS certification 80 PLUS Platinum | PC | ATX | Fan diameter 120 mm | Weight 5.3 kg | Package type Box | GP-UD1600PM PG5

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 6.88 €
Minimum down payment from 0.00 €

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

  • 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
  • ATX 3.1 and PCIe Gen 5.0 ready
  • Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
  • 80 PLUS Platinum certified
  • Fully modular design
  • Powerful single +12V rail

SummaryGIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm
Vendor Homepagehttps://www.gigabyte.com/
Category CodePSU
CnCode85044095
Unit Box Height0.25
Unit Box Length0.6
Unit Box Width0.11
AC input frequency50/60
AC input voltage100 - 240
Combined power (+12V)1600
Combined power (+3.3V)150
Combined power (+5V)150
Combined power (+5Vsb)17.5
Combined power (-12V)9.6
Efficiency92
Hold time16
Input current15 - 7.5
Max output current (+12V)133.3
Max output current (+3.3V)30
Max output current (+5V)30
Max output current (+5Vsb)3.5
Max output current (-12V)0.8
Power factor0.9
Power Factor Correction (PFC) typeActive
Power Good signal delay range100 - 150
Power protection featuresOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power1600
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular
CPU power connector (4+4 pin)Yes
EPS power connector (4+4 pin)Yes
Motherboard power cable length610
Motherboard power connector20+4 pin ATX
Number of SATA power connectors16
PCI Express connectorYes
