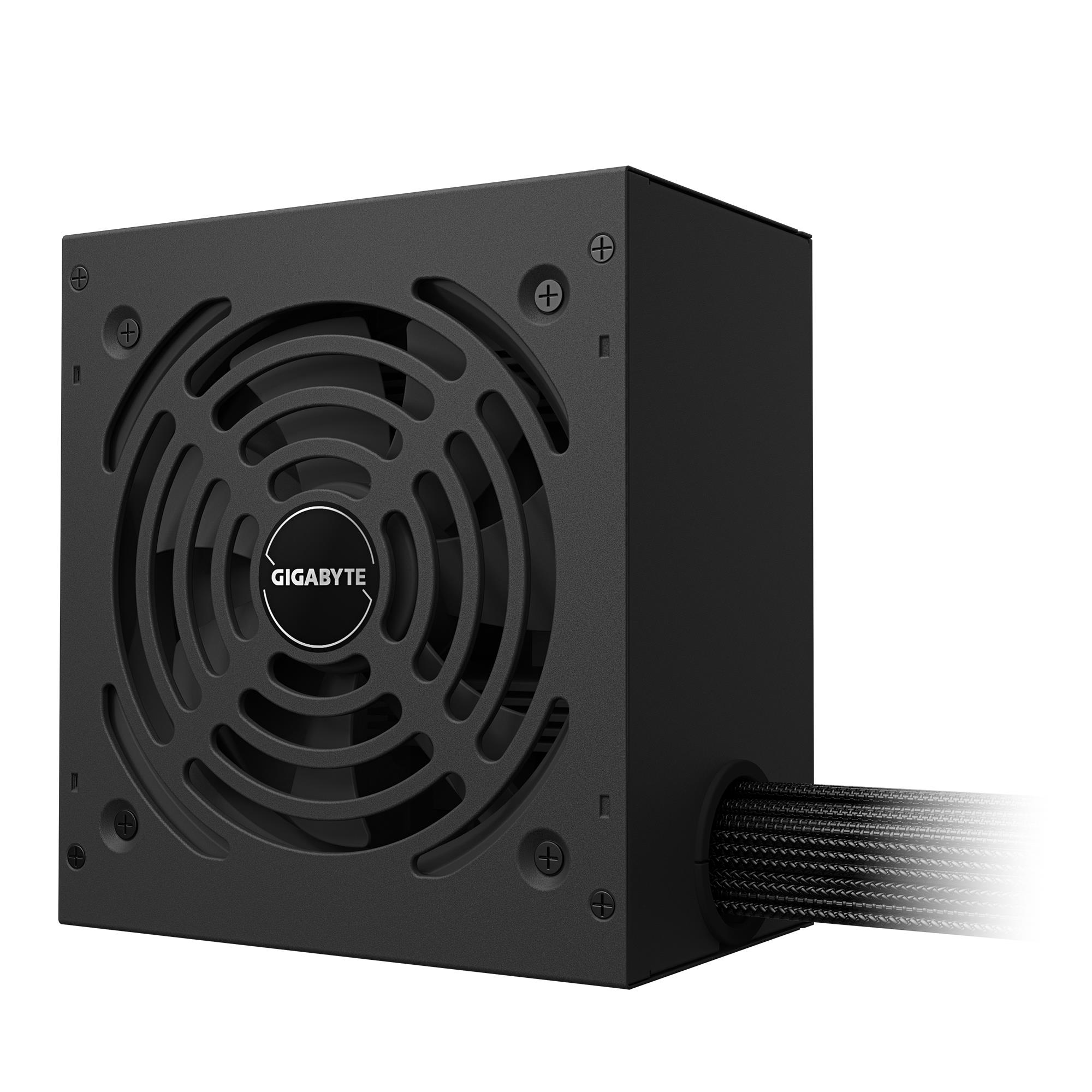

Power Supply GIGABYTE GP-P650G PG5 ATX PC 100 – 240 V 650 W GP-P650GPG5

57€

650 W | 100 – 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 1.76 kg | Package type Box | GP-P650G PG5

93 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500

Description

GIGABYTE P650G PCIE 5.1 (GP-P650G)
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

  • ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Main Japanese capacitors
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact design

SummaryGIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Vendor Homepagegigabyte.com/Power-Supply/GP-P650G-PG5#kf
Category CodePSU
CnCode85044095
Unit Box Height0.12
Unit Box Length0.26
Unit Box Width0.215
AC input frequency50/60
AC input voltage100 - 240
Combined power (+12V)650
Combined power (+3.3V)90
Combined power (+5V)650
Combined power (+5Vsb)15
Combined power (-12V)3.6
Input current10 - 6
Max output current (+12V)54.2
Max output current (+3.3V)18
Max output current (+5V)18
Max output current (+5Vsb)18
Max output current (-12V)0.3
Maximum input current (@110V)10
Maximum input current (@220V)6
Power Factor Correction (PFC) typeActive
Power Good signal delay range100 - 150
Power protection featuresOver power/Overcharge/Short circuit/Under voltage
Total power650
ATX power connector (20+4 pin)Yes
Cabling typeNon-Modular
CPU P4 connector (4-pin)1
CPU power cable length600
CPU power connector (4+4 pin)Yes
Floppy disk drive connectorYes
Motherboard power cable length600
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
