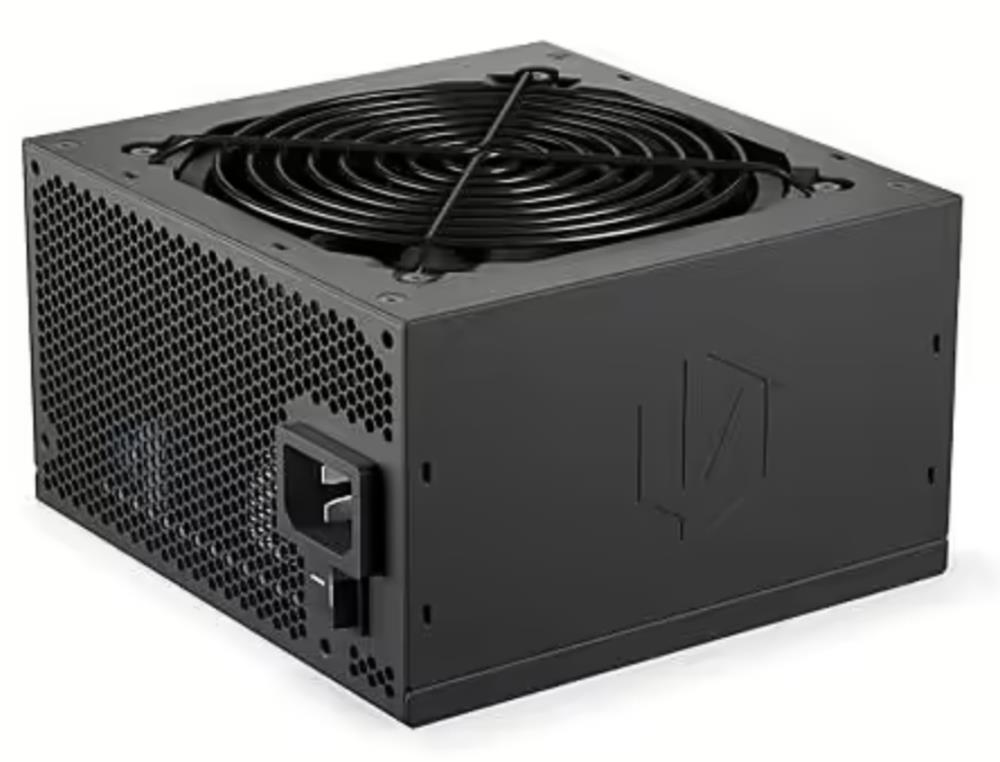

Description | The Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures your PC runs stably without unexpected resets interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors so you can squeeze the last juices out of it without a hitch. No wonder it is 80 PLUS® Gold certified ;) |
Summary | ENDORFY Supremo FM5. Total power: 650 W, AC input voltage: 115 - 230 V, AC input frequency: 50/60 Hz. Motherboard power connector: 18+10 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC |
Vendor Homepage | https://endorfy.com/en/product/supremo-fm5-gold-650w/ |
Category Code | PSU |
CnCode | 85044095 |
Unit Box Height | 0.22 |
Unit Box Length | 0.1 |
Unit Box Width | 0.27 |
AC input frequency | 50/60 |
AC input voltage | 115 - 230 |
Combined power (+12V) | 648 |
Combined power (+3.3V) | 100 |
Combined power (+5V) | 100 |
Combined power (+5Vsb) | 15 |
Combined power (-12V) | 3.6 |
Max output current (+12V) | 54 |
Max output current (+3.3V) | 20 |
Max output current (+5V) | 20 |
Max output current (+5Vsb) | 3 |
Max output current (-12V) | 0.3 |
Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
Total power | 650 |
Cabling type | Fully-Modular |
Motherboard power connector | 18+10 pin ATX |
Number of SATA power connectors | 3 |
PCI Express power connectors (8-pin) | 6 |
80 PLUS certification | 80 PLUS Gold |
Mean time between failures (MTBF) | 100000 |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Supported motherboard form factors | ATX |
Fan diameter | 120 |
Number of fans | 1 |
On/off switch | Yes |
Product colour | Black |
Cables included | AC |
