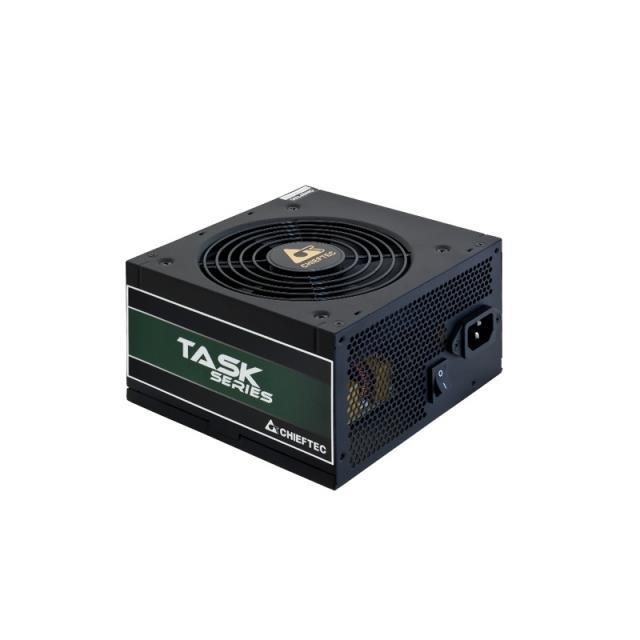

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S

48,90€

TPS-700S

Availability: 53 in stock

48,90€

Availability: 53 in stock

Add to cart
Buy Now
SKU: 1339188
Product code: TPS-700S
Category: Brand:
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500

Description

TPS-700S

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

  • 80PLUS Bronze certified efficiency
  • 650mm long cables for maximum case compatibility
  • All modern protection and safety features included

SummaryChieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
Vendor Homepagehttps://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
Category CodePSU
CnCode85044095
Unit Box Height0.185
Unit Box Length0.235
Unit Box Width0.105
AC input frequency47 - 63
AC input voltage100 - 240
Combined power (+12V)648
Combined power (+5Vsb)12.5
Combined power (-12V)3.6
Input current10
Max output current (+12V)54
Max output current (+3.3V)19
Max output current (+5V)17
Max output current (+5Vsb)2.5
Max output current (-12V)0.3
Power factor0.9
Power Factor Correction (PFC) typeActive
Power protection featuresOver voltage/Overheating/Overload/Short circuit/Under voltage
Total power700
ATX power connector (20+4 pin)Yes
Cabling typeNon-Modular
EPS power connector (4+4 pin)Yes
Motherboard power cable length650
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express power cable length500
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power cable length150/500
Peripheral (Molex) power connectors (4-pin)3
SATA power cable length150/500
80 PLUS certification80 PLUS Bronze
Power supply unit (PSU) form factorATX
