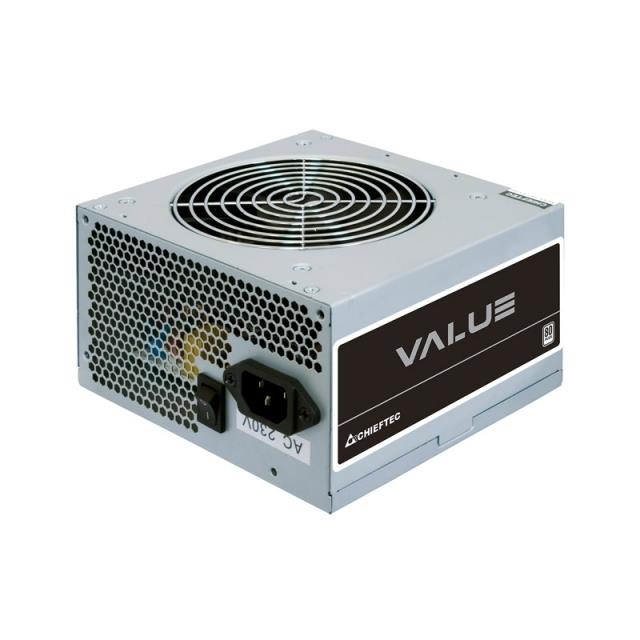

Power Supply CHIEFTEC 600 Watts Efficiency 80 PLUS PFC Active APB-600B8
APB-600B8
78 in stock
Estimated Delivery: Up to 2-3 business days
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
| Description | The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice! |
| Summary | Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS |
| Vendor Homepage | https://www.chieftec.eu/products-detail/181/VALUE_SERIES/526/APB-600B8 |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.15 |
| AC input frequency | 47 - 63 |
| AC input voltage | 200 - 240 |
| Combined power (+12V) | 552 |
| Combined power (+3.3V) | 120 |
| Combined power (+5V) | 120 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Max output current (+12V1) | 46 |
| Max output current (+3.3V) | 20 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Maximum input current (@220V) | 4.5 |
| Peak power | 600 |
| Total power | 600 |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | No |
| Floppy disk drive cable length | 150 |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 550 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 150/500 |
| 80 PLUS certification | 80 PLUS |
Description
ATX 2.3 | 600 Watts | Cooling System 12cm fan | 80 PLUS | PFC Active
