MONITOR ACC DESK MOUNT 17-49″/DS70S-950BL1 NEOMOUNTS

227

DS70S-950BL1

4 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 4.73 €
Minimum down payment from 0.00 €

Description

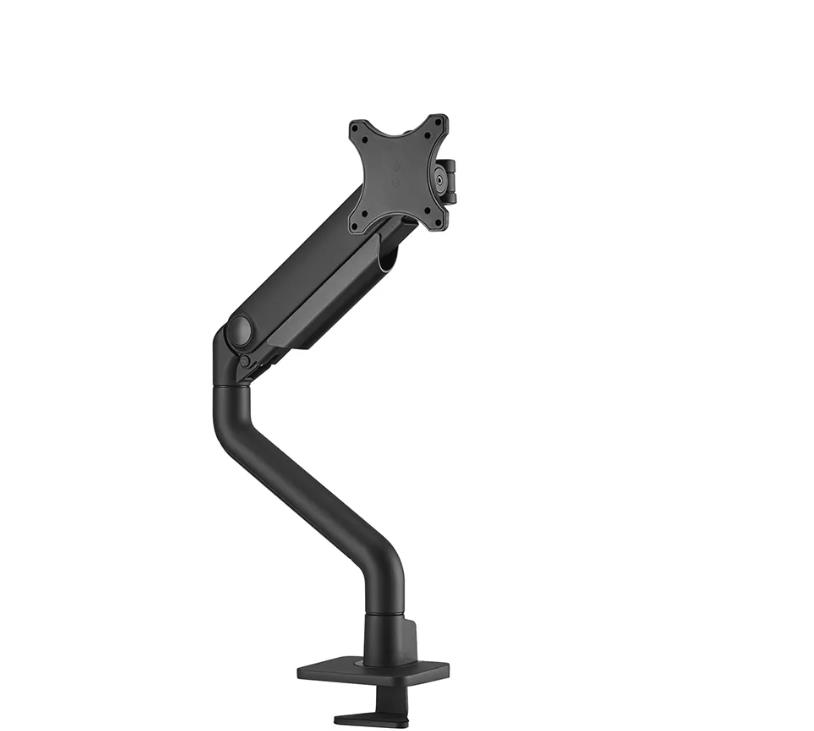

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

SummaryNeomounts DS70S-950BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: Black
Vendor Homepagehttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS70S-950BL1
Category CodeMAS
CnCode83021000
Unit Box Height0.14
Unit Box Length0.48
Unit Box Width0.17
Clamp mount desk thickness (max)50
Desk thickness (max)55
Desk thickness (min)10
Distance to the wall (max)656
Distance to the wall (min)119
Grommet mount desk thickness (max)55
Maximum screen size49
Maximum VESA mount100 x 100
Maximum weight capacity18
Maximum weight capacity (per curved/ultra-wide display)15
Maximum weight capacity (per display)18
Minimum screen size17
Minimum VESA mount75 x 75
MountingClamp/Grommet
Mounting typeDesk
Number of displays supported1
Panel mounting interface100 x 100/75 x 75
Adjustable depthYes
Angle of rotation360
Cable managementYes
Depth adjustment range88 - 625
Height adjustmentYes
Height adjustment range200 - 520
Height adjustment typeGas spring
Number of arms1
Pivot angle-180 - 180
RotatingYes
Swivel angle range-90 - 90

Description

Max. weight 18 kg | Fits screens sized 17-49″ | Distance to wall 65.6 cm | 75 mm x 75 mm | 100 mm x 100 mm | Colour Black

Brand

NEOMOUNTS
