MONITOR ACC DESK MOUNT 17-49″/DS70PLUS-450BL1 NEOMOUNTS

131€

DS70PLUS-450BL1

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 2.75 €
Minimum down payment from 0.00 €
NEOMOUNTS

Description

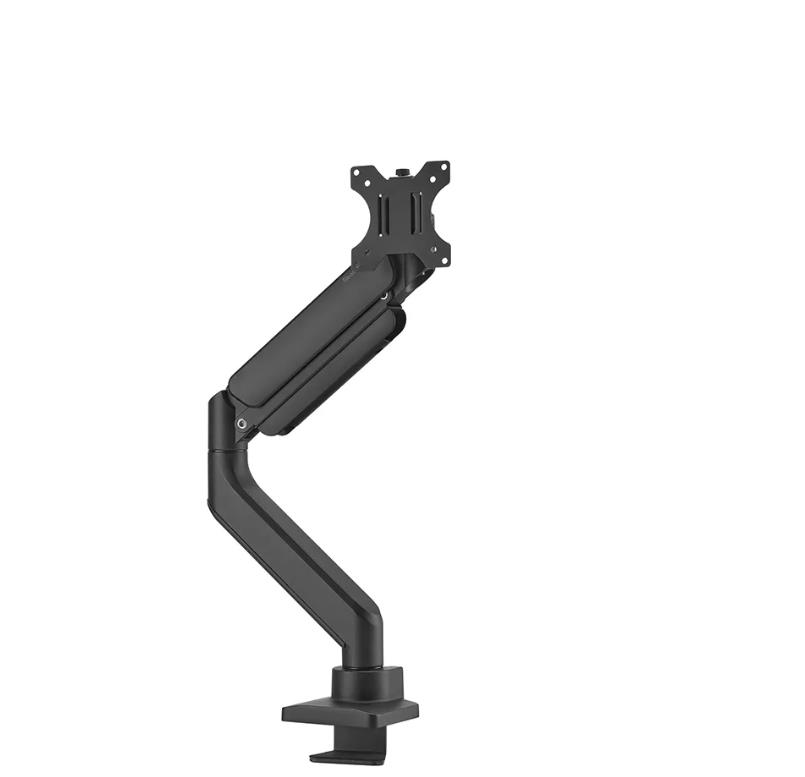

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.

SummaryNeomounts DS70PLUS-450BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Vendor Homepagehttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS70PLUS-450BL1
Category CodeMAS
CnCode83021000
Unit Box Height0.29
Unit Box Length0.45
Unit Box Width0.13
Number of displays supported1
Maximum weight capacity (per display)18
Maximum weight capacity18
Maximum weight capacity (per curved/ultra-wide display)14
Minimum screen size17
Maximum screen size49
MountingClamp/Grommet
Mounting typeDesk
Minimum VESA mount75 x 75
Maximum VESA mount100 x 100
Panel mounting interface100 x 100/75 x 75
Desk thickness (min)10
Desk thickness (max)45
Distance to the wall (min)108
Distance to the wall (max)568
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range261 - 555
Adjustable depthYes
Depth adjustment range54 - 511
Width adjustment920
Tilt adjustmentYes
Tilt angle range-45 - 45
SwivellingYes
Swivel angle range-90 - 90
RotatingYes
Angle of rotation360
Pivot angle-180 - 180

Description

Max. weight 18 kg | Fits screens sized 17-49″ | Distance to wall 56.8 cm | 75 mm x 75 mm | 100 mm x 100 mm | Colour Black

Brand

NEOMOUNTS
