WIRELESS SYSTEM CONTROLLER/ABAX 2 ACU-280 SATEL

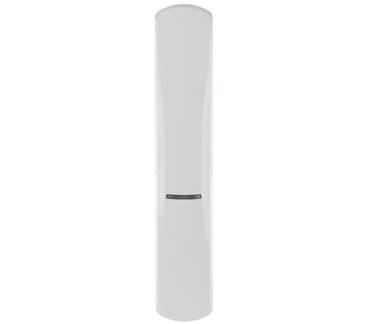

ABAX 2 wireless system controller
ACU-280 provides two-way, encrypted (AES standard) communication in the 868 MHz band - all radio transmissions between components of the ABAX 2 system are acknowledged. It works together with the INTEGRA, INTEGRA Plus and VERSA control panels, enabling wireless devices to be added to the alarm system. Because of its small size, it requires little space for installation.
The device meets the high EN 50131 requirements for Grade 2.
An advantage of the controller is its excellent transmission range, which can be up to 1600 m in the open area, depending on the device working with the controller and their operating conditions. Such good communication parameters are obtained thanks to the use of a modern radio system.
The controller can be programmed from the control panel, a keypad, or the DLOADX program. For advanced diagnostics of the wireless system operation, the ABAX 2 Soft program is used. Configuration, as well as firmware upgrade and testing of enrolled wireless devices are carried out by radio, without having to demount them.

    compliance with the EN 50131 Grade 2 requirements
    two-way radio communication in the 868 MHz band - 4 channels
    range up to 1600 m in the open area
    support for up to 48 wireless system devices
    support for wireless keypads: INT-KWRL2 - up to 4, VERSA-KWRL2 - up to 6
    support for up to 248 APT-200 wireless keyfobs
    works together with the INTEGRA, INTEGRA Plus and VERSA control panels - connection to the communication bus
    programming controller settings via:
    control panel service menu or DLOADX program - when working with the INTEGRA, INTEGRA Plus or VERSA control panels
    firmware update without demounting of the controller
    remote configuration and updating of devices registered to the controller
    compact sizes
    easy installation in the OPU-4 P enclosure using the HOLDER A2 mount
    tamper protection
    power supply: 12 V DC
