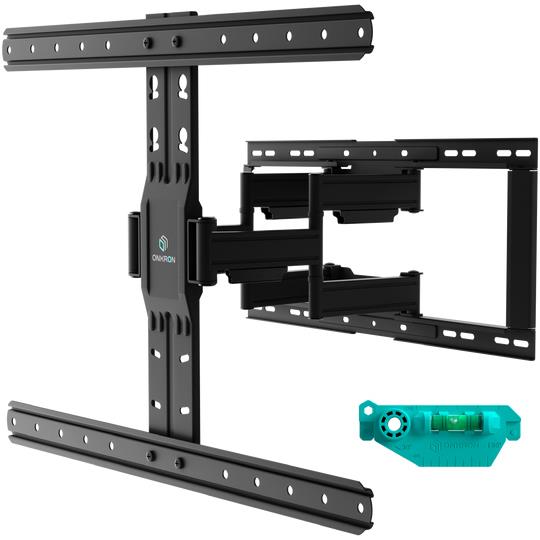

TV SET ACC WALL MOUNT /32-90″/BLACK SM6L-B ONKRON

99€

4262392442424

11 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

  • For TV Screen 32"-90"
  • Max load: 50 kg
  • VESA: 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mm
  • Tilt angle: +5° ~ -10°
  • Rotation angle: -45° ~ +45°
  • Horizontal adjustment: -3° ~ +3°
  • Extension from the wall: 34 - 415 mm
  • Removable level, marking template included
  • Material: cold-rolled steel

SummaryONKRON SM6L-B. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 5°, Angle of rotation: 45°, Distance to the wall (min): 3.4 cm, Distance to the wall (max): 41.5 cm. Product colour: Black
Vendor Homepagehttps://onkron-uk.co.uk/products/sm6l-b?_pos=1&_sid=dd8e9e423&_ss=r
Category CodeTMS
CnCode83021000
Unit Box Height0.05
Unit Box Length0.7
Unit Box Width0.5
Number of displays supported1
Maximum weight capacity (per display)50
Maximum weight capacity50
Minimum screen size32
Maximum screen size90
Minimum VESA mount200 x 200
Maximum VESA mount600 x 400
Panel mounting interface200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400
Mounting typeWall
Tilt adjustmentYes
Tilt angle range-10 - 5
RotatingYes
Angle of rotation45
Distance to the wall (max)415
Distance to the wall (min)34
Housing materialSteel
Product colourBlack
Package 1 dimensions (WxDxH)710 x 505 x 55
Package 1 weight7100
Package 2 dimensions (W x D x H)770 x 393 x 77
Package 2 weight7450
Unit Calculated Weight8.15
Product Net Weight7.45
Unit Calculated Volume0.0216
Units per Shipping Box2
Shipping Box Weight16.2999992370605
Unit Width50
Units per Pallet0
