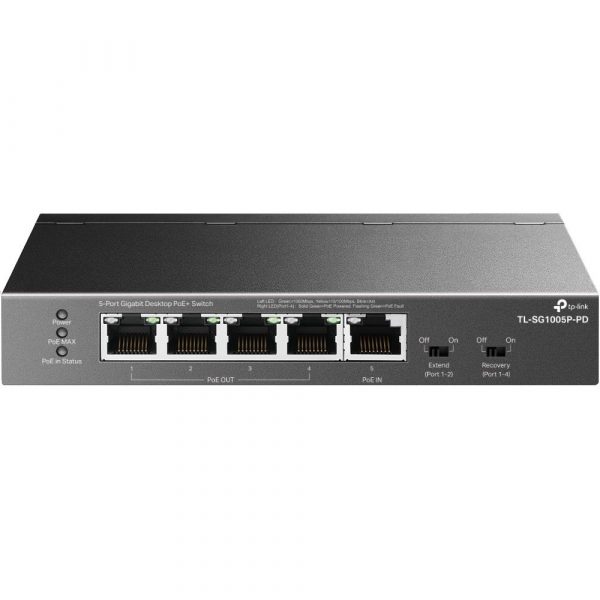

Switch TP-LINK TL-SG1005P-PD Desktop/pedestal 5x10Base-T / 100Base-TX / 1000Base-T PoE+ ports 5 TL-SG1005P-PD

32€

PoE+ ports 5 | Switching capacity 10 Gbps | Forwarding rate 7.44 Mpps | Dimensions 158 × 101 × 25 mm | Product Net Weight 0.3 kg

26 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500

Description

- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Ideal for Mains-Free Environments
Powered by a PoE++ switch or PoE++ injector, no additional DC adapter is required.
- Scenarios without mains power
- Powered by PoE++/PoE+/PoE

Power over Ethernet, Flexible Network Deployment
Supports up to 66W/47W/21W/9W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.* The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

- Access Point
- IP Phone
- IP Camera
- 4K Video
- Network Video Recorder
- Computer

Instantaneous Multi-mode Toggles, Ideal for IP Surveillance
- Extend Mode. Up to 250m Transmissions. With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
- Recovery Mode. PoE Auto Recovery. Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

  • Powered by PoE++/PoE+/PoE
  • Up to 66 W PoE Budget*
  • Long-Range PoE+ (250 m**)
  • PoE Auto Recovery
  • Plug and Play
  • Multicast Optimization
  • Silent Operation
  • Durable Metal Casing

SummaryTP-Link TL-SG1005P-PD. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u,.... Power over Ethernet (PoE). Wall mountable
Vendor Homepagehttps://www.tp-link.com/eg/business-networking/omada-switch-unmanaged/tl-sg1005p-pd/#highlights
Category CodeSWI
CnCode85176200
Unit Box Height0.05
Unit Box Length0.195
Unit Box Width0.13
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
10G supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Cable types supportedCat3/Cat4/Cat5/Cat5e/Cat6
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Flow control supportYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
Networking standardsIEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Forwarding rate7.44
MAC address table2000
Store-and-forwardYes
Switching capacity10
IGMP snoopingYes
LED indicatorsYes
Number of fans0
Product colourBlack
Wall mountableYes
FanlessYes
Power consumption (max)68.59
Power sourcePoE
Power supply includedNo
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity5
Total Power over Ethernet (PoE) budget66
