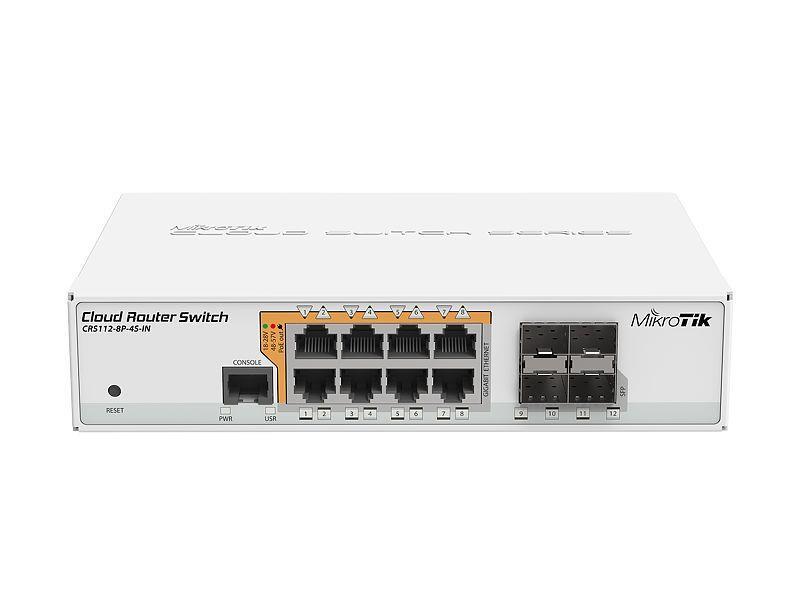

Switch MIKROTIK 8x10Base-T / 100Base-TX / 1000Base-T 4xSFP 1xConsole CRS112-8P-4S-IN

173

CRS112-8P-4S-IN

59 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 3.61 €
Minimum down payment from 0.00 €

Description

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

SummaryMikrotik CRS112-8P-4S-IN. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Vendor Homepagehttps://mikrotik.com/product/crs112_8p_4s_in#fndtn-downloads
Category CodeSWI
CnCode85176200
Unit Box Height0.056
Unit Box Length0.308
Unit Box Width0.238
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorDC-in jack
SFP module slots quantity4
10G supportNo
Networking standardsIEEE 802.3af/IEEE 802.3at
Product colourWhite
Built-in processorYes
Compatible operating systemsRouterOS L5
Flash memory16
Internal memory128
Processor frequency400
DC input voltage18 - 57
Power consumption (max)10
Power over Ethernet (PoE)Yes
Operating temperature (T-T)-20 - 60
AC adapter includedYes
Harmonized System (HS) code85176990
ModelMIKROTIK 4SFP CRS112-8P-4S-IN
Units per Shipping Box10
Unit Calculated Volume0.005392
Unit Calculated Weight1.62

Brand

MIKROTIK
