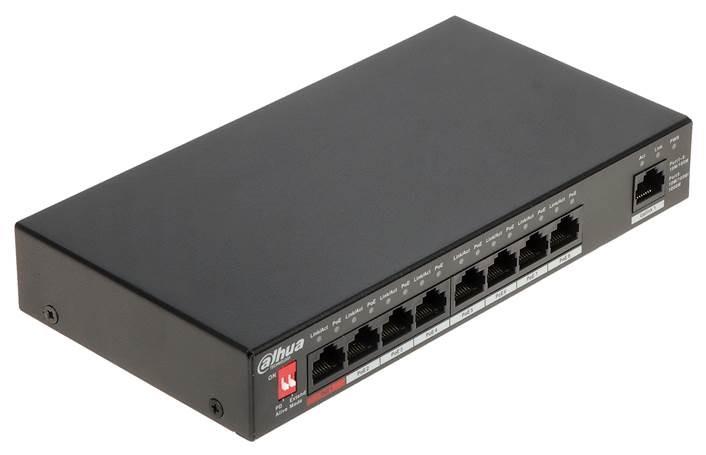

Switch DAHUA Type L2 Desktop/pedestal Rack 1x10Base-T / 100Base-TX / 1000Base-T PoE ports 8 96 Watts DH-PFS3009-8ET1GT-96-V2

62€

DH-PFS3009-8ET1GT-96-V2

12 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
DAHUA

Description

DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 1*100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

  • Layer two commercial switch
  • > Supports PoE power management
  • > Supports wall-mount installation
  • > Supports anti-theft lock hole
  • > MAC auto learning and aging, MAC address capacity is 2K
  • > Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • > RJ45 port supports 10/100 Mbps self-adaptation
  • > Supports 250 meters long distance PoE transmission
  • > Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

SummaryDahua Technology PFS3009-8ET-96. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
Vendor Homepagehttps://www.dahuasecurity.com/products/productDetail/12971
Category CodeSWI
CnCode85176200
Unit Box Height0.24
Unit Box Length0.27
Unit Box Width0.08
Switch layerL2
Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
10G supportNo
Auto MDI/MDI-XYes
Flow control supportYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
Networking standardsIEEE 802.3af/IEEE 802.3at
Forwarding rate1.34
MAC address table2000
Packet buffer memory0.768
Switching capacity1.8
Product colourBlack
Rack mountingNo
StackableNo
DC input voltage48 - 57
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Total Power over Ethernet (PoE) budget96
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 55
Depth100
Height30
Weight480
Width190
Units per Shipping Box1

Description

Type L2 | Desktop/pedestal | Rack | 1x10Base-T / 100Base-TX / 1000Base-T | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3u | IEEE 802.3x | PoE ports 8 | PoE power budget 96 Watts | Switching capacity 3.6 Gbps | Forwarding rate 2.678 Mpps | Dimensions 190 mm ? 100 mm ? 30 mm | Unit Net Weight 0.47 kg

Brand

DAHUA
