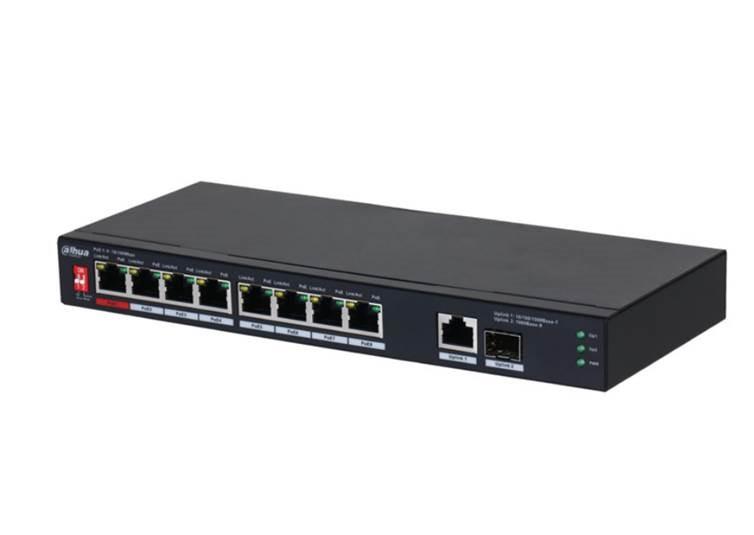

Switch DAHUA PFS3110-8ET1GT1GF-96 Desktop/pedestal 8x10Base-T / 100Base-TX 1x10Base-T / 100Base-TX / 1000Base-T 2x1000Base-T PoE ports 8 96 Watts DH-PFS3110-8ET1GT1GF-96

78€

DH-PFS3110-8ET1GT1GF-96

47 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 1.62 €
Minimum down payment from 0.00 €
DAHUA

Description

Intelligent PoEP

rovides power consumption control and real-time monitoring toguarantee priority of power supply for important ports and preventmalfunctioning caused by power consumption change. Supports ultrawide power supply, able to adapt to IPC power fluctuation.

Red Port 90 W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoEstandards, with a maximum output power consumption of 90W perport. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switchedon by dialing/turning on the WEB page switch. It enables the switch toautomatically detect port status and restart the failed ports to recoverconnection in case of IPC connection exception. This enables intelligentoperation and maintenance management in its true sense andeffectively reduces manual maintenance costs.

Long Distance PoEB

y dialing or enabling long-range transmission on the WEB interface,the transmission distance of a PoE port can be up to 250 m, meeting therequirement of wired transmission (bandwidth reduced to 10 Mbps).

  • 100 Mbps PoE ports and gigabit uplink ports
  • The red port meets the IEEE 802.3bt standard
  • Power supply supports up to 90 W
  • PoE watchdog monitors the status of terminals in real-time
  • Supports 250 m long-distance power supply
  • Supports the power management policy
  • 8-pin PoE offers better compatibility and reduces cable loss
  • Durable full-metal housing provides great heat dissipation

SummaryDahua Technology PoE PFS3110-8ET1GT1GF-96. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53 V. Power over Ethernet (PoE)
Vendor Homepagehttps://www.dahuasecurity.com/search/products?keyword=DH-PFS3110-8ET1GT1GF-96
Category CodeSWI
CnCode85176200
Unit Box Height0.09
Unit Box Length0.285
Unit Box Width0.24
Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity1
10G supportNo
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x
Forwarding rate4.17
Jumbo frames9000
Jumbo frames supportYes
MAC address table8000
Packet buffer memory0.5
Switching capacity5.6
Housing materialMetal
Product colourBlack
DC input voltage53
Input current1.81
Power consumption (max)96
Power sourceDC
Power supply includedYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Total Power over Ethernet (PoE) budget96
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 70
Depth105
Height28

Description

Desktop/pedestal | 8x10Base-T / 100Base-TX | 1x10Base-T / 100Base-TX / 1000Base-T | 2x1000Base-T | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3u | IEEE 802.3x | PoE ports 8 | PoE power budget 96 Watts | Switching capacity 5.6 Gbps | Forwarding rate 4.17 Mpps | Dimensions 240 ? 105 ? 28mm | Unit Net Weight 0.65 kg

Brand

DAHUA
