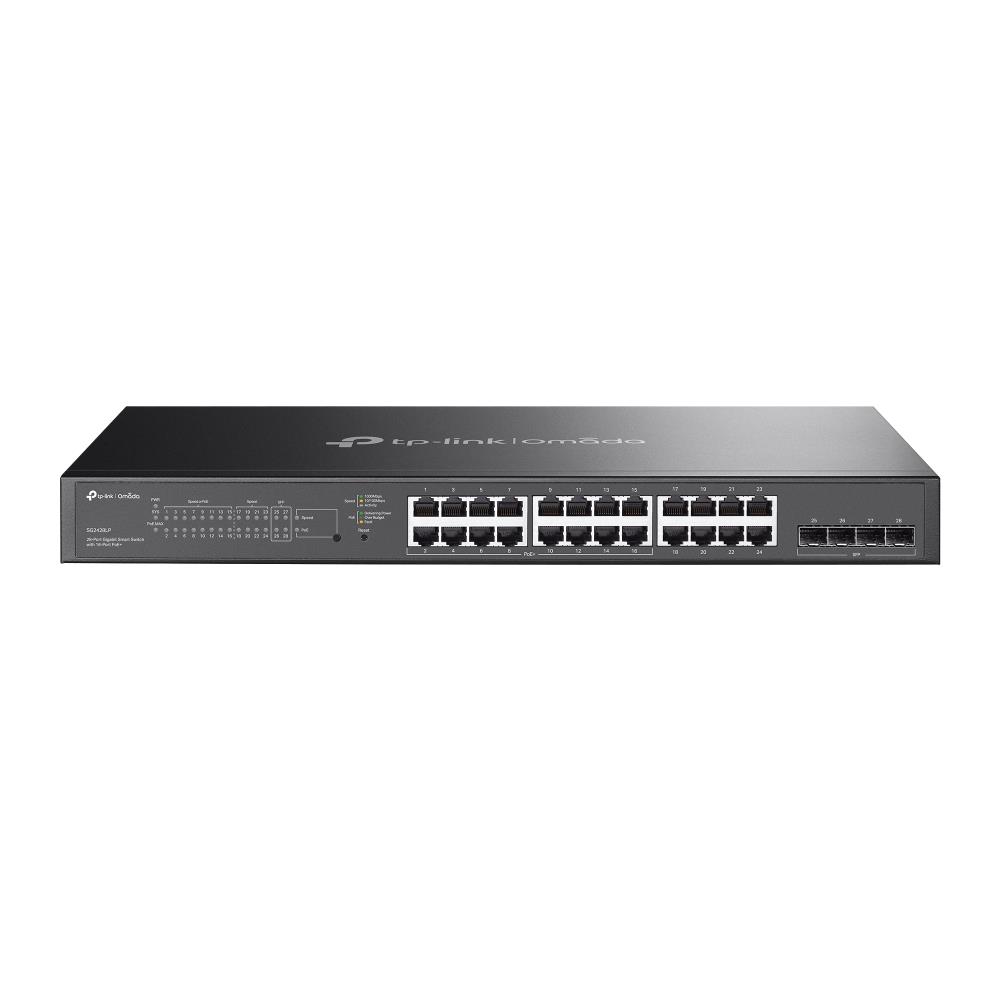

Switch TP-LINK Omada SG2428LP PoE ports 8 PoE+ ports 16 150 Watts SG2428LP

272€

SG2428LP

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 5.62 €
Minimum down payment from 0.00 €
TP-LINK

Description

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

  • 16× Gigabit 802.3af/at PoE+ ports
  • 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
  • 150 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for quiet operation
  • Durable metal casing and rackmountable design

SummaryTP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
Vendor Homepagehttps://www.tp-link.com/au/business-networking/omada-switch-smart/sg2428lp/#highlights
Category CodeSWI
CnCode85176200
Unit Box Height0.1
Unit Box Length0.535
Unit Box Width0.34
ARP inspectionYes
Cloud-managedYes
Quality of Service (QoS) supportYes
Switch layerL2/L2+
Switch typeManaged
Web-based managementYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
10G supportNo
Auto-negotiationYes
Flow control supportYes
Link aggregationYes
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of VLANs4000
Spanning tree protocolYes
Virtual LAN featuresMAC address-based VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN supportYes
Forwarding rate41.66
Jumbo frames9000
Jumbo frames supportYes
MAC address table8000
Packet buffer memory4.1
Switching capacity56
Access Control List (ACL)Yes
DHCP featuresDHCP relay/DHCP server
IGMP snoopingYes
MAC address filteringYes

Description

Series Omada | Desktop/pedestal | Rack | 24x10Base-T / 100Base-TX / 1000Base-T | 4xSFP | PoE ports 8 | PoE+ ports 16 | PoE power budget 150 Watts | Switching capacity 56 Gbps | Forwarding rate 41.66 Mpps | Dimensions 440?220?44 mm | Unit Net Weight 3.7 kg

Brand

TP-LINK
