NET CAMERA 4MP HYBRID BULLET/TPC-BF2241-TB7F8-DW-S2 DAHUA

1808€

TPC-BF2241-TB7F8-DW-S2

1 in stock
SKU: 1437738 Category: Brand:
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 33.78 €
Minimum down payment from 180.80 €
DAHUA

Description

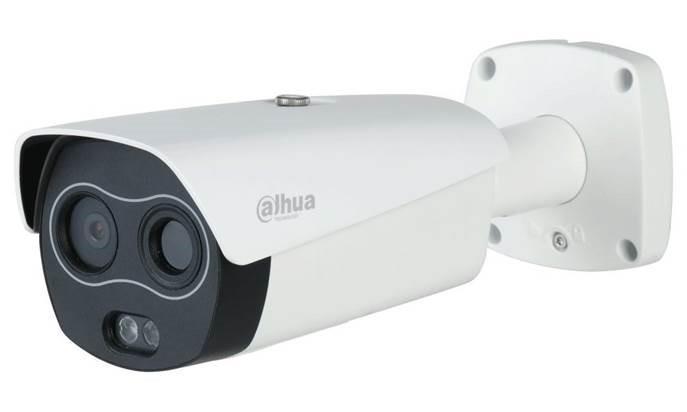

Thermal Network Hybrid Bullet Camera
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.
> Built-in white light and speaker that produce light and sound alarms to deter intruders.
> Built-in IR LED with a maximum illumination distance of 35 m.
> Dual image fusion (visible and thermal images).
> 12 VDC ± 20%/PoE power supply.
> IP67 rated.
> Thermal Focal Length 7 mm, Field of View 24°
> Visual Focal Length 8 mm, Field of View 33.4°



Vendor Homepagewww.dahuasecurity.com/products/All-Products/Thermal-Cameras/Thermography-Series/Thermography/TPC-BF2241-T
Category CodeFNC
CnCode85258900
Unit Box Height0.18
Unit Box Length0.365
Unit Box Width0.18
Alarm In1
Alarm Out1
Audio-In1
Audio-Out1
MicroSD Card Slot1
RJ451
RS-4851
ModelTPC-BF2241-TB7F8-DW-S2
Camera designBullet
Network Camera TypeOutdoor/Thermal
Resolution4
Focal LengthThermal - 7mm, visual - 8mm
IR IlluminationYes
Sensor size1/2.7" CMOS
Min. Illumination0.005
Effective pixels256 (H) × 192 (V)
Electronic Shutter Speed1 s–1/30,000 s
Supports card capacities up to256GB
Power options12V/PoE
Power supply requirements12 VDC, 1 A ± 20%, PoE (802.3af)
Power consumption5
EnvironmentOutdoor
Operating temperature range–30 °C to +60 °C (–22 °F to +140 °F)
Dimensions279.9 mm × 103.8 mm × 95.8 mm
Units per Shipping Box1
Unit Calculated Volume0.01183
Product Net Weight1.4
Unit Calculated Weight1.93

Description

Type Outdoor/Thermal | Pixel Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/2.7″ CMOS | Min. Illumination 0.005 Lux | Effective pixels 256 (H) × 192 (V) | Electronic Shutter Speed 1 s–1/30,000 s | 1xAudio-In | 1xAudio-Out | 1xMicroSD Card Slot | 1xRJ45 | 1xRS-485 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC, 1 A ± 20%, PoE (802.3af) | Environment Outdoor | Operating temperature range –30 °C to +60 °C (–22 °F to +140 °F) | Dimensions 279.9 mm × 103.8 mm × 95.8 mm

Brand

DAHUA
