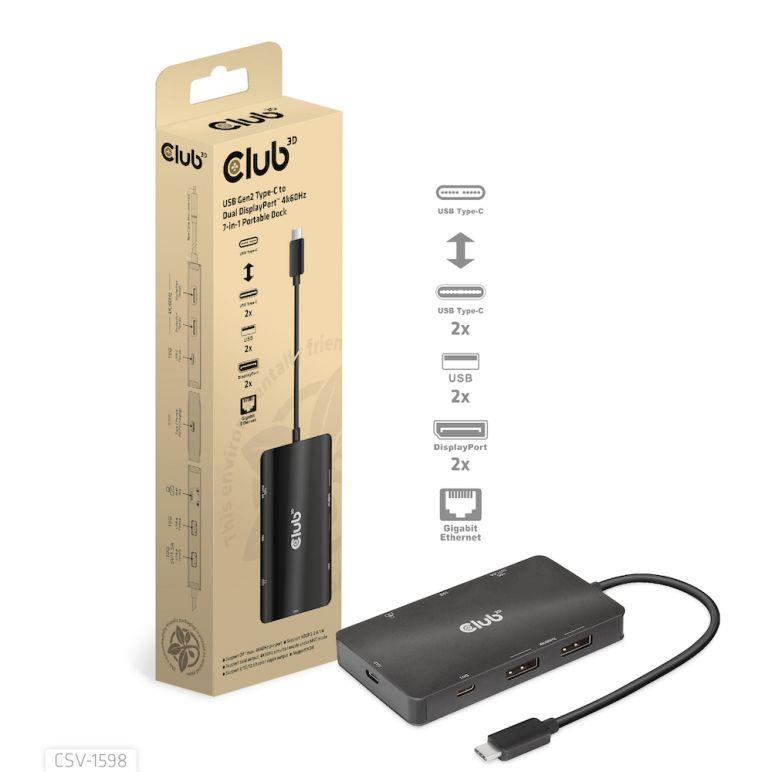

NB ACC DOCKING STATION 7IN1/USB-C 100W CSV-1598 CLUB3D
Colour Black
2 in stock
Estimated Delivery: Up to 2-3 business days
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
| Description | The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission , connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously.It can work on all DP™ Alt mode supported USB Type-C host. |
| Summary | CLUB3D USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 HUB. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W, HDCP version: 1.4/2.2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 4K Ultra HD, Maximum refresh rate: 60 Hz. Output voltage: 5 V, Output current: 1.5 A, Power consumption (max): 7.5 W. Width: 105 mm, Depth: 59 mm, Height: 14 mm |
| Vendor Homepage | https://www.club-3d.com/en/detail/2611/usb_gen2_type_c_to_dual_displayport_4k60hz_7_in_1_portable_dock/ |
| Category Code | NBK |
| CnCode | 84733020 |
| Unit Box Height | 0.275 |
| Unit Box Length | 0.08 |
| Unit Box Width | 0.035 |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 |
| Certification | ROHS, FCC, CE EMI |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| Hub interfaces | DisplayPort/RJ-45/USB 3.2 Gen 2 (3.1 Gen 2) Type-A/USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Maximum refresh rate | 60 |
| Number of displays supported | 2 |
| Plug and Play | Yes |
| Product colour | Black |
| Output current | 1.5 |
| Output voltage | 5 |
| Power consumption (max) | 7.5 |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Depth | 59 |
| Height | 14 |
| Weight | 102 |
