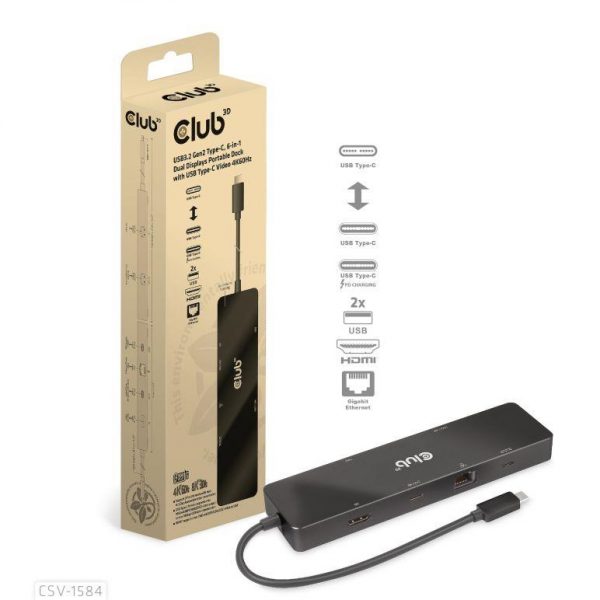

NB ACC DOCKING STATION 6IN1/USB-C 100W CSV-1584 CLUB3D

The Club 3D CSV-1584 is a USB3.2 Gen2 Type-C, 6-in-1 Hub with HDMI™ 8K30Hz/4K60Hz,
2xUSB Type-A(10G), Ethernet RJ45(1Gbps) and 2xUSB Type-C, 1x Video4K60Hz or Data(10G)
and 1xPD3.0 charging 100 watt, providing an ideal solution for extending the USB Type-C
port or Thunderbolt host (PC/Laptop/Mobile phone etc.), especially for those host with a
single USB Type-C port. This hub adopts DP1.4 Alt mode supported IC, enabling to output
max single 8K30Hz(DSC) or dual different videos(4K60Hz*2) and the USB Type-C Video port
also supports transfer USB3.2 Gen2 data with max 10Gbps. 2 USB Type-A and USB Type-C
Video ports allow you to connect 3 USB devices simultaneously. Gigabit Ethernet port allow
you to surf on the internet, USB Type-C PD Charging port supports max 100W PD Charging.
It can work on all DP Alt mode supported USB Type-C hosts

• Support DP1.4 Alt mode with max 16.2Gbps bandwidth video transmission
• Type-C female supports max 7680x4320P@30Hz(DSC) video output or max 10Gbps USB
• data transmission
• HDMI™ supports max 7680x4320P@30Hz(DSC) video output
• Support Dual 4K/60Hz simultaneously under MST mode on windows system
• Support Dual 4K/60Hz simultaneously under SST mode on Mac OS system
• Support High Dynamic Range(HDR)
• One USB-A port(away from the upstream) supports max 7.5W(5V/1.5A) downstream
• charging, another port supports max 900mA downstream charging
• 2 USB-A ports support max 10Gbps data transmission
• Support Gigabit Ethernet, 10Mbps/100Mbps/1000Mbps
• Type-C PD Charging port supports PD3.0 Fast Role Swap and supports max 100W power
• supply
