NB ACC DOCKING STATION 16IN1/THUNDERBOLT CSV-1583 CLUB3D

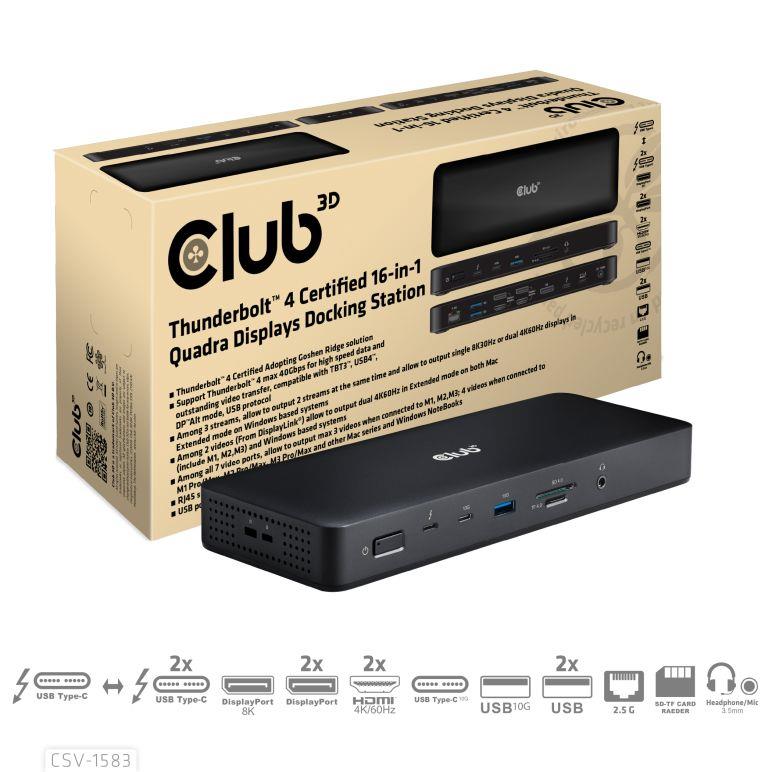

The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.

• Adopting Goshen Ridge solution
• Designed for TBT4™/USB4™ based PCs and compatible with TBT3™/DP-Alt-mode PCs
• Support Thunderbolt™ 4 max 40Gbps for high speed data and outstanding
• video transfer, compatible with TBT3™, USB4™, DP™Alt mode, USB protocol
• Among 3 streams, allow to output 2 streams at the same time and allow to
• output single 8K30Hz or dual 4K60Hz displays in Extended mode on Windows
• based system
• Among 2 videos (From DisplayLink®) allow to output dual 4K60Hz in Extended
• mode on both Mac (include M1, M2,M3) and Windows based systems
• Among all 7 video ports, allow to output max 3 videos when connected to M1
• M2,M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max
• and other Mac series and Windows NoteBooks
• RJ45 supports max 2.5G bandwidth
• USB ports support max 10G data transmission
• SD/TF supports SD4.0 with max 312MBps
• Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
• Support smart power which enables to flexibly distribute power to PC and Hub
• in real time according to the consumption of connected devices
• Compatibility Details:
• Support TBT4™/USB4™/TBT3™/DP-Alt-mode Hosts
• Support Windows 10 or upwards, Mac 13.5.2 (Limitations may vary on different
• Apple proprietary Silicon)
• Supports both the Kensington Anti-theft lock as well as the standard Nano
• Anti-theft lock(which uses Only 70% of the physical space)
