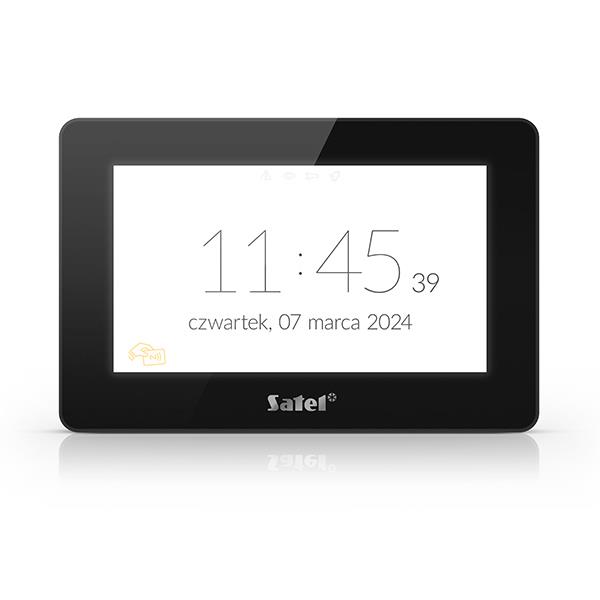

KEYPAD TOUCHSCREEN INTEGRA/MIFARE INT TSH2R-B SATEL

370€

INT-TSH2R-B

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 7.71 €
Minimum down payment from 0.00 €
SATEL

Description

  • 7" capacitive glass touchscreen with swipe gestures support
    • 1024x600 screen resolution, 16.7 million colours (true colour)
  • multi-level user customisable graphic interface
    • up to 24 user screens
  • customisable and adaptable interface screens
  • more than 20 preset graphic themes
  • custom themes support
  • widgets for keypad operation, control of the alarm system and automation devices connected to the control panel
  • system control via MACRO functions, which activate an entire chain of different commands (including building automation commands)
  • quick activation of PANIC, FIRE, AND MEDICAL alarms
  • integration with the INTEGRA (INTEGRA Firmware 1.20 or higher), VERSA (VERSA Firmware 1.10 or higher) and PERFECTA 64 M control panels
  • screensaver with options to display clock, date, system component statuses (zones, doors, exits), and temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M)
  • option to display a slideshow (photo frame function)
  • current system status notifications displayed on the taskbar
  • built-in MIFARE® proximity card reader (13.56 MHz) (supported by INTEGRA and INTEGRA Plus control panels only):
    • Ultralight CSN/SSN
    • Classic CSN/SSN/MSN
    • DESFire (EV1 / EV2 / EV3) CSN/MSN
  • 2 programmable hardwired zones (INTEGRA and INTEGRA Plus only)
    • support for NO and NC type detectors, as well as roller shutter and vibration detectors;
    • support for EOL, 2EOL and 3EOL configuration (3EOL in with the INTEGRA Plus only);
    • programming of end-of-line resistor values
  • built-in speaker for acoustic signalling
  • adjustment of acoustic signalling volume
  • adjustable screen brightness with day/night mode
  • built-in microSD memory card slot (for storing photo frame pictures, additional screen wallpapers and custom sounds for audible signals of zone violations - chimes)
  • tamper contact responding to the enclosure opening or detaching from the wall
  • available in white (INT-TSH2R-W) and black (INT-TSH2R-B) enclosure

Vendor Homepagewww.satel.eu/en/product/10467/INT-TSH2R-B,7%E2%80%9D-touchscreen-keypad
Category CodeSKP
CnCode85311030
Unit Box Height0.045
Unit Box Length0.225
Unit Box Width0.15
ColourBlack
Dimensions196 x 129 x 22 mm
Units per Shipping Box1
Unit Calculated Volume0.001519
Product Net Weight0.386
Unit Calculated Weight0.49
