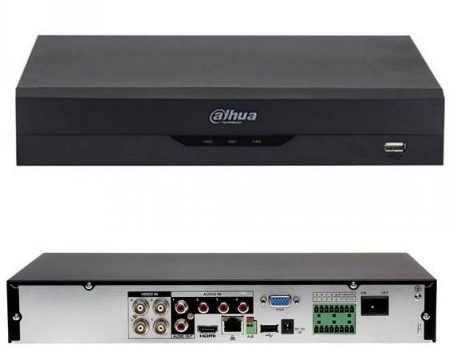

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA

321

DH-XVR5216AN-I3

5 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 6.68 €
Minimum down payment from 0.00 €

Description

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI
upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
  • Up to 2 channels video stream (analog channel) Perimeter Protection
  • Up to 16 channels video stream (analog channel) SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition
  • IoT & POS functionalities

SummaryDahua Technology XVR5216AN-I3. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 12 W. Width: 375 mm, Depth: 289 mm, Height: 53 mm
Vendor Homepagehttps://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3
Category CodeSTD
CnCode85219000
Unit Box Height0.36
Unit Box Length0.435
Unit Box Width0.14
Audio input1
Audio output1
BNC input ports16
HDMI ports quantity1
RS-485 ports1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Supported network protocolsHTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
HDD interfaceSATA
Maximum HDD capacity16000
Number of HDDs supported1
Analog signal format systemNTSC/PAL
Audio formats supportedG.711 µ-law/G.711 A-law/PCM
Backup functionYes
CertificationCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Channels quantity16
InternalNo
Maximum video resolution1920 x 1080
Operating system installedEmbedded LINUX
Playback resolutions supported1920 × 1080, 1280 × 1024, 1280 × 720
Product colourBlack
PTZ controlYes
Rack capacity1U
Video capturing speed (NTSC)30
Video capturing speed (PAL)25

Description

16 Channel | Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP | SATA | USB | 1xAudio-In | 1xAudio-Out | DC12V, 4A

Brand

DAHUA
