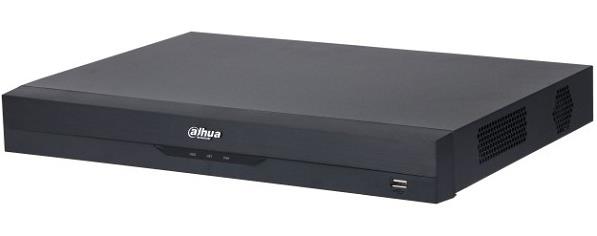

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA
DH-XVR5216AN-I3
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
| Description | Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
|
| Summary | Dahua Technology XVR5216AN-I3. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 12 W. Width: 375 mm, Depth: 289 mm, Height: 53 mm |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3 |
| Category Code | STD |
| CnCode | 85219000 |
| Unit Box Height | 0.36 |
| Unit Box Length | 0.435 |
| Unit Box Width | 0.14 |
| Audio input | 1 |
| Audio output | 1 |
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| HDD interface | SATA |
| Maximum HDD capacity | 16000 |
| Number of HDDs supported | 1 |
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Backup function | Yes |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Channels quantity | 16 |
| Internal | No |
| Maximum video resolution | 1920 x 1080 |
| Operating system installed | Embedded LINUX |
| Playback resolutions supported | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Video capturing speed (NTSC) | 30 |
| Video capturing speed (PAL) | 25 |
Description
16 Channel | Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP | SATA | USB | 1xAudio-In | 1xAudio-Out | DC12V, 4A
