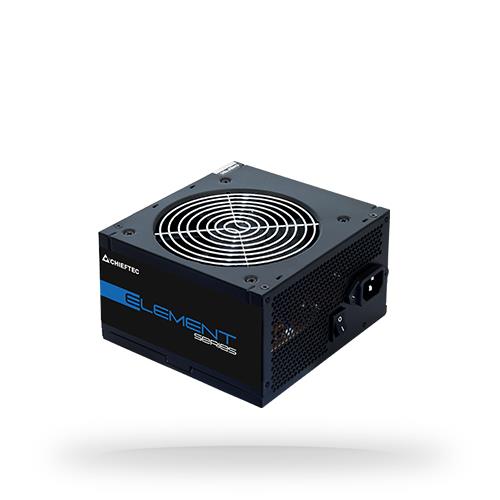

Power Supply CHIEFTEC 600 Watts Efficiency 80 PLUS BRONZE PFC Active ELP-600S
ELP-600S
30 in stock
Estimated Delivery: Up to 2-3 business days
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
Delivery by courier: €5.90
Delivery by Omniva Parcel machine:€3.90
Free shipping on all orders over €500
| Description | The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price. |
| Summary | Chieftec ELP-600S. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm |
| Vendor Homepage | https://www.chieftec.eu/en/psus/ps-2/element-series/elp-600s.html |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| AC input frequency | 47 - 63 |
| AC input voltage | 200 - 240 |
| Combined power (+12V) | 552 |
| Combined power (+3.3V) | 120 |
| Combined power (+5V) | 120 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Efficiency | 85 |
| Input current | 4.5 |
| Max output current (+12V) | 46 |
| Max output current (+3.3V) | 20 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 600 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 1 |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| 80 PLUS certification | 80 PLUS Bronze |
Description
ATX 2.3 | 600 Watts | Cooling System 12cm fan | 80 PLUS BRONZE | PFC Active | Colour Black
