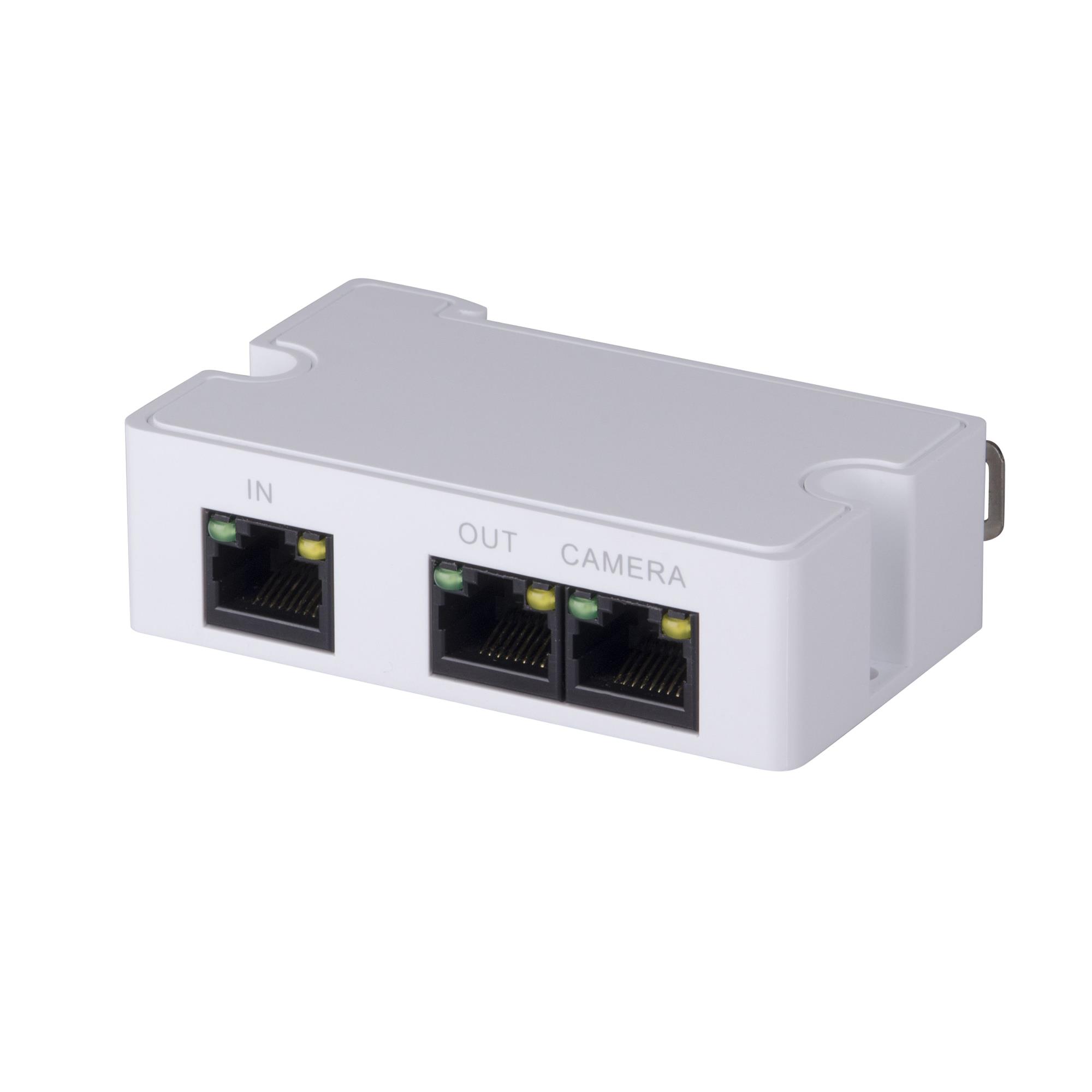

NET POE EXTENDER PASSIVE/PFT1300 DAHUA

32,90€

6939554913044

106 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

  • Support passive PoE cascade power supply and Ethernet data exchange
  • Support IEEE 802.3af/at standard power supply IP Camera
  • Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m
  • 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
  • Installation mode: junction box internal mounting, DIN rail mounting

SummaryDahua Technology PFT1300. Type: Network transmitter, Maximum transfer distance: 300 m, Ethernet LAN data rates: 10,100 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3af, IEEE 802.3at. Product colour: White. Power consumption (typical): 3 W. Width: 79 mm, Depth: 52 mm, Height: 23 mm
Vendor Homepagehttps://it.dahuasecurity.com/in/products/productDetail/8971
Category CodeNEX
CnCode85176990
Unit Box Height0.08
Unit Box Length0.115
Unit Box Width0.08
TypeNetwork transmitter
Maximum transfer distance300
Ethernet LAN data rates10/100
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3af/IEEE 802.3at
Power over Ethernet (PoE) ports quantity3
Product colourWhite
Power consumption (typical)3
Power over Ethernet (PoE)Yes
Operating temperature (T-T)-30 - 65
Operating relative humidity (H-H)10 - 90
Width79
Depth52
Height23
Weight57
Unit Calculated Weight0.11
Product Net Weight0.057
Units per Shipping Box1
Unit Width8
Unit Depth11.5
Unit Height8
Unit Calculated Volume0.000736
Shipping Box Weight0.11
Shipping Box Height8
Shipping Box Depth11.5
Shipping Box Width8
NameNET POE EXTENDER PASSIVE/PFT1300 DAHUA
Model namePFT1300
