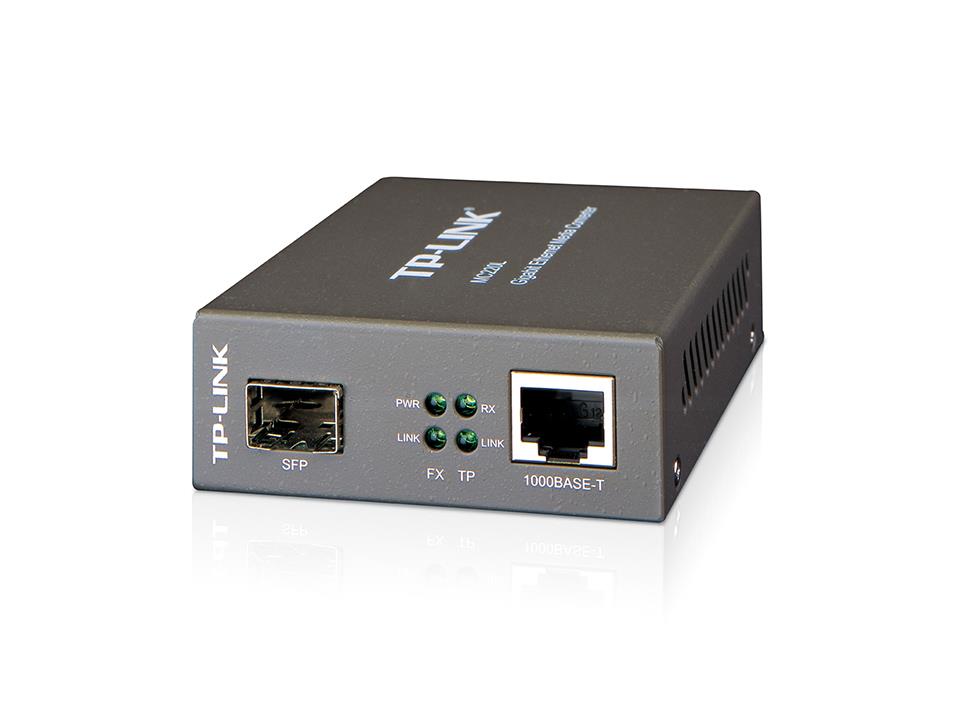

NET MEDIA CONVERTER 10KM/FX-SX/LX/LH MC220L TP-LINK

17,10€

MC220L

31 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
TP-LINK

Description

- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

SummaryTP-Link Gigabit SFP Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 10000 m, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Link, Product colour: Black, Compliance industry standards: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x. Fiber optic connector: SFP, Connectivity technology: Wired. Power consumption (max): 1.7 W
Vendor Homepagehttps://www.tp-link.com/products/product_des.asp?id=123#
Category CodeMCO
CnCode85176990
Unit Box Height0.065
Unit Box Length0.205
Unit Box Width0.17
Auto MDI/MDI-XYes
Cabling technologyUTP 5e, 5
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000
Maximum data transfer rate1000
Networking standardsIEEE 802.1ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Fiber mode structureMulti-mode/Single-mode
Maximum transfer distance10000
Compliance industry standardsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
InternalNo
LED indicatorsLink
Product colourBlack
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber optic connectorSFP
Fiber ports quantity1
External power adapterYes
Power consumption (max)1.7
Depth73
Height27
Width94.5
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-40 - 70
Package depth165
Package height65
Package weight420

Brand

TP-LINK
