NET GPON TERMINAL 2,5G 1PORT/WAVE-FIBER-ONU UBIQUITI

52€

810177162230

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

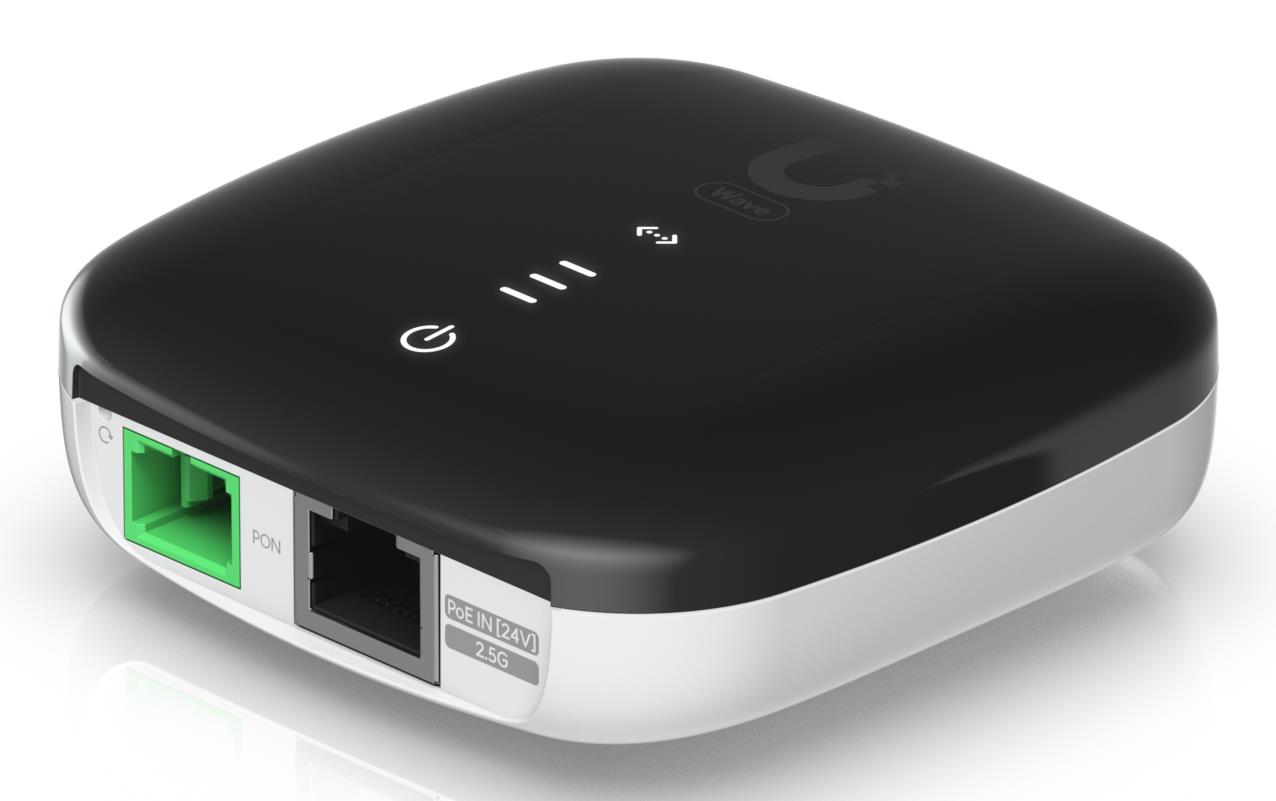

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

SummaryUbiquiti WaveFiber ONU. Product type: Optical network unit (ONU), Product colour: Black, White, Housing material: Polycarbonate (PC). ITU standards: G.984, Ethernet LAN data rates: 1000,2500 Mbit/s, Switch layer: L2/L3. Fiber optic connector: SC/APC. Power consumption (max): 5 W. Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
Vendor Homepagehttps://eu.store.ui.com/eu/en/category/fiber-gpon/products/wave-fiber-onu
Category CodeNTU
CnCode85176200
Unit Box Height0.055
Unit Box Length0.22
Unit Box Width0.125
Product typeOptical network unit (ONU)
Product colourBlack,White
Housing materialPolycarbonate (PC)
LED indicatorsLAN/Power/Status
ITU standardsG.984
Ethernet LAN data rates1000/2500
Switch layerL2/L3
Upstream data rate1244
Downstream data rate2488
Transmission distance (max)20
Tx wavelength (min)1310
Rx wavelength (min)1490
Tx power (min)1.5
Tx power (max)5
VLAN supportYes
Reset buttonYes
Fiber ports quantity1
Fiber optic connectorSC/APC
Ethernet LAN (RJ-45) ports1
Power consumption (max)5
Compliance certificatesCE/Federal Communications Commission (FCC)/Industry Canada (IC)
Operating temperature (T-T)-15 - 45
Operating relative humidity (H-H)10 - 90
Width76.5
Depth76.5
Height26.4
Weight78
Quantity per pack1
