NB ACC DOCKING STATION/USB-C 120W CSV-1568 CLUB3D

235€

Colour Silver

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 4.91 €
Minimum down payment from 0.00 €

Description

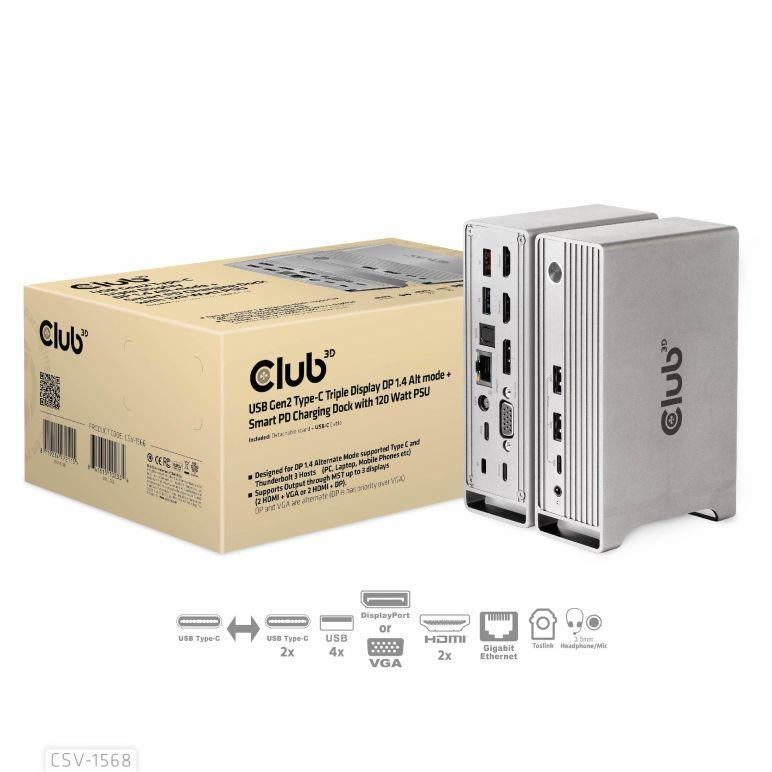

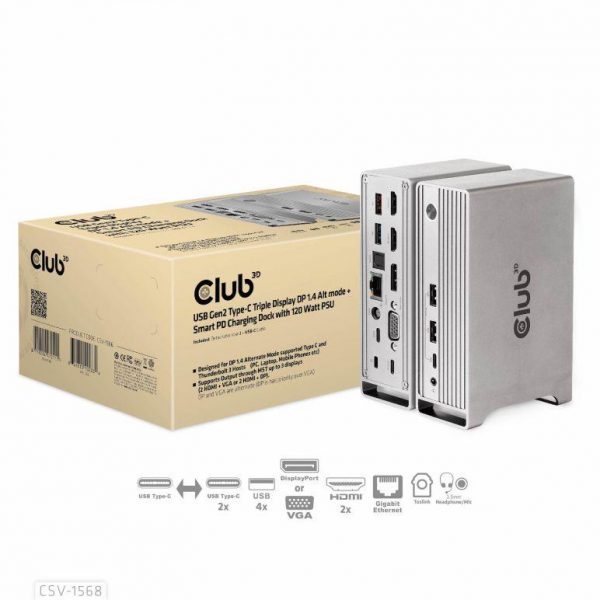

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

  • Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
  • Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
  • When 3 Displays are connected - 16.2Gbps bandwidth will be shared
  • Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
  • DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
  • DP and HDMI support deep color 8/10 bit
  • DP and HDMI support HDR
  • DP and HDMI support HDCP2.2 & 1.4
  • DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
  • Support Gigabit Ethernet 10/100/1000M
  • Support USB3.2 Gen2 with max 10Gbps data transfer
  • Support smart charging
  • Support Digital audio with max 96KHz/24bit sampling rate
  • Support dual power supplies: Type-C PD charging or DC Jack
  • Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
  • Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W

SummaryCLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
Vendor Homepagehttps://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
Category CodeNBK
CnCode84733020
Unit Box Height0.095
Unit Box Length0.225
Unit Box Width0.16
Combo headphone/mic portYes
Connectivity technologyDocking
DC-in jackYes
DisplayPort version1.4
DisplayPorts quantity1
HDCPYes
HDCP version1.4/2.2
HDMI ports quantity2
Headphone connectivity3.5 mm
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Thunderbolt 3 Power DeliveryYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100
USB Type-C DisplayPort Alternate ModeYes
VGA (D-Sub) ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Brand compatibilityApple
Card reader integratedYes
CertificationMeets ROHS, FCC, and CE EMI requirements
CompatibilityLenovo Dell Acer Asus MSI Toshiba Apple HP Razer
Country of originChina
Data transfer rate16.2
High Dynamic Range (HDR) supportedYes
