MONITOR ACC DESK MOUNT 17-42″/DS70-450WH1 NEOMOUNTS

156€

8717371449483

Out of stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

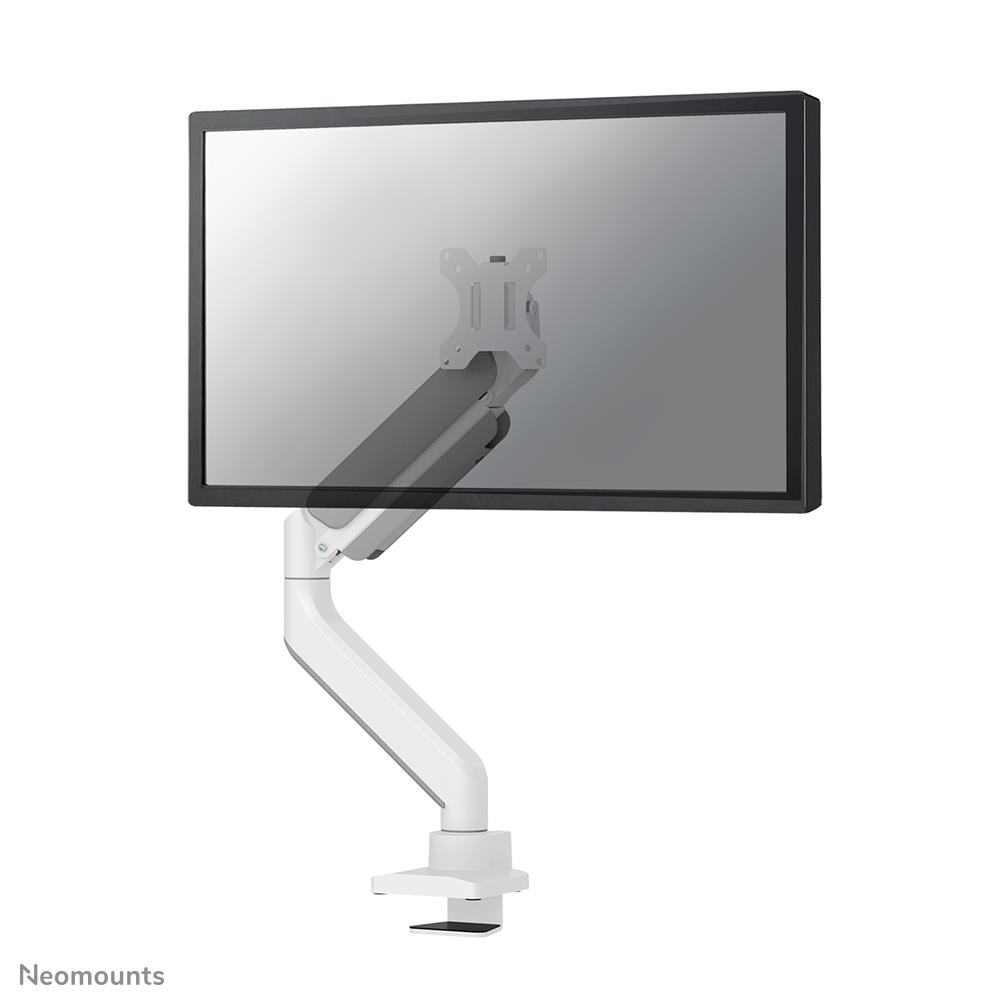

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.

SummaryNeomounts DS70-450WH1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Vendor Homepagehttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-450WH1
Category CodeMAS
CnCode83021000
Unit Box Height0.285
Unit Box Length0.45
Unit Box Width0.125
Number of displays supported1
Maximum weight capacity (per display)15
Maximum weight capacity15
Maximum weight capacity (per curved/ultra-wide display)11
Minimum screen size17
Maximum screen size42
MountingClamp/Grommet
Mounting typeDesk
Minimum VESA mount75 x 75
Maximum VESA mount100 x 100
Panel mounting interface100 x 100/75 x 75
Desk thickness (min)10
Desk thickness (max)45
Distance to the wall (min)108
Distance to the wall (max)568
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range261 - 555
Adjustable depthYes
Depth adjustment range54 - 511
Width adjustment920
Tilt adjustmentYes
Tilt angle range-45 - 45
SwivellingYes
Swivel angle180
Swivel angle range-90 - 90
RotatingYes
Angle of rotation360
