MONITOR ACC DESK MOUNT 17-32″/DS70-810BL1 NEOMOUNTS

117€

8717371449216

Out of stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

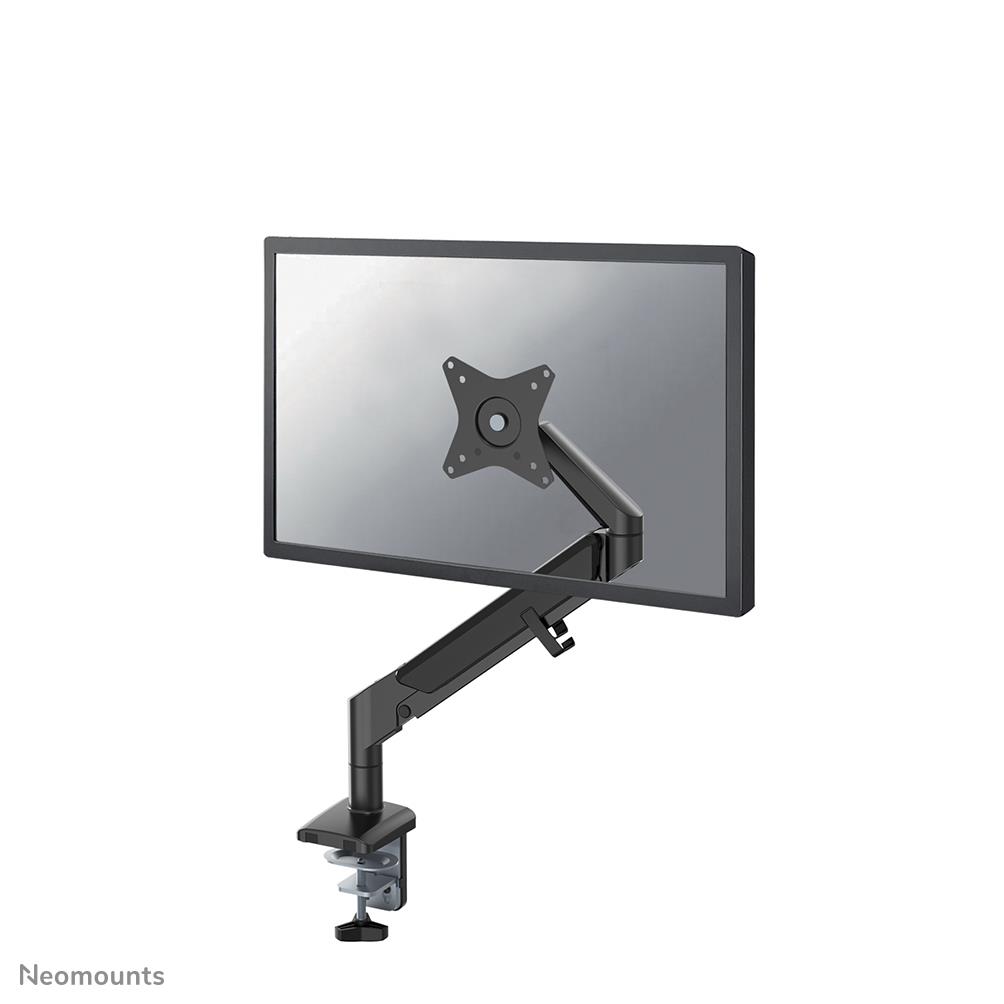

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

SummaryNeomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Vendor Homepagehttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-810BL1
Category CodeMAS
CnCode83021000
Unit Box Height0.23
Unit Box Length0.41
Unit Box Width0.12
Number of displays supported1
Maximum weight capacity (per display)9
Maximum weight capacity9
Maximum weight capacity (per curved/ultra-wide display)9
Minimum screen size17
Maximum screen size32
MountingClamp/Grommet
Mounting typeDesk
Minimum VESA mount75 x 75
Maximum VESA mount100 x 100
Panel mounting interface100 x 100/75 x 75
Desk thickness (min)10
Desk thickness (max)85
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range265 - 550
Adjustable depthYes
Depth adjustment range0 - 490
Tilt adjustmentYes
Tilt angle range-45 - 45
SwivellingYes
Swivel angle range-90 - 90
RotatingYes
Angle of rotation360
Pivot angle-180 - 180
Cable managementYes
Housing materialSteel
Product colourBlack
