Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|Z790GAMINGPLUSWIFI

216€

4711377134712

21 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

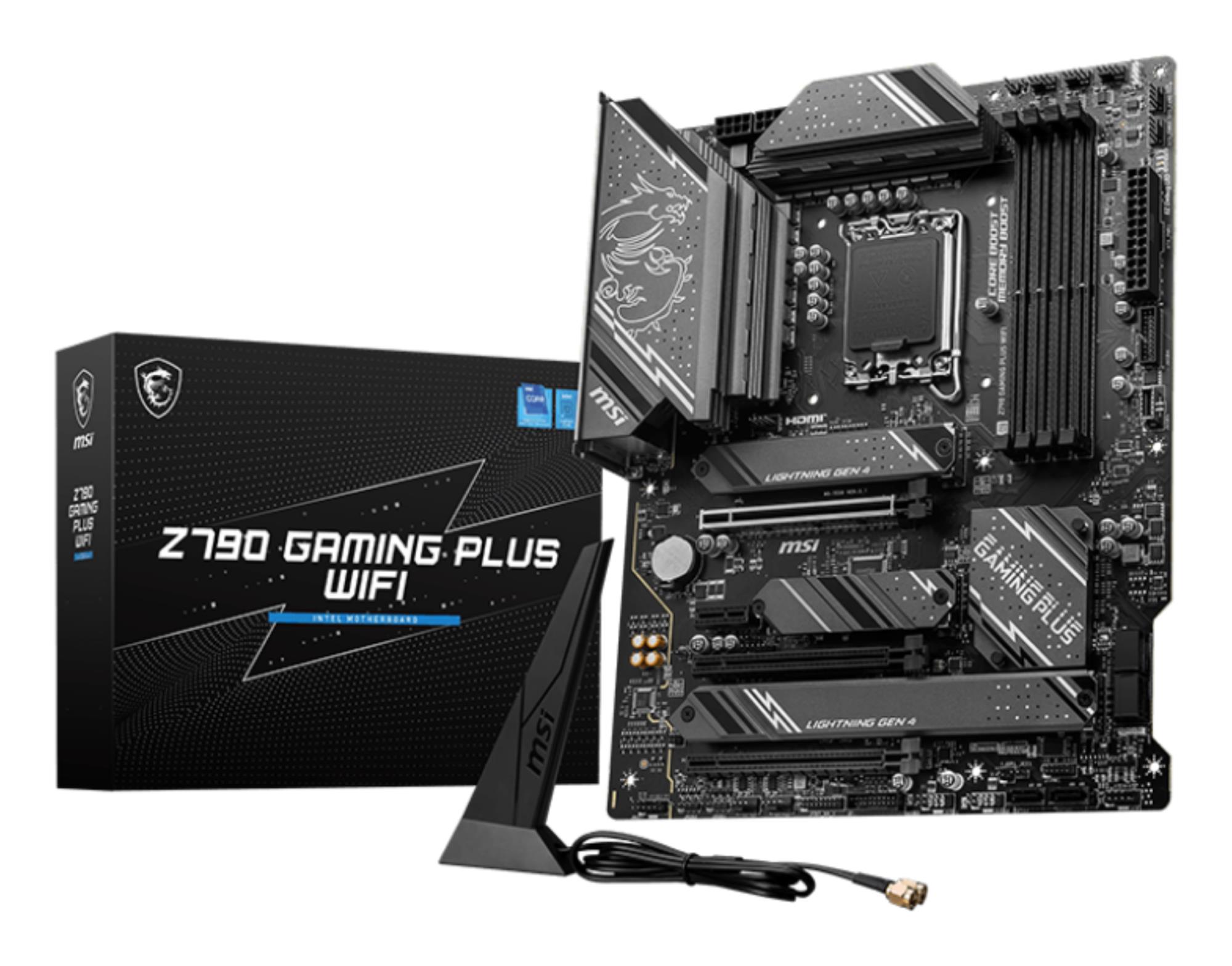

Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.








  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SummaryMSI Z790 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Vendor Homepagehttps://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
Category CodeMBI
CnCode84733020
Unit Box Height0.07
Unit Box Length0.345
Unit Box Width0.27
Motherboard chipsetIntel Z790
Audio chipRealtek ALC897
Product colourBlack
Component forPC
Motherboard form factorATX
Audio output channels7.1
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64/Windows 11 x64
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®/Intel® Pentium® Gold
Supported processor socketsLGA 1700
Supported memory typesDDR5-SDRAM
Number of memory slots4
ECC сompatibilityNon-ECC
Supported memory clock speeds4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
Supported memory clock speed (max)7200
Maximum internal memory192
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,PCI Express
RAID supportYes
RAID levels0/1/10/5
Parallel processing technology supportNot supported
On-board graphics cardNo
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
