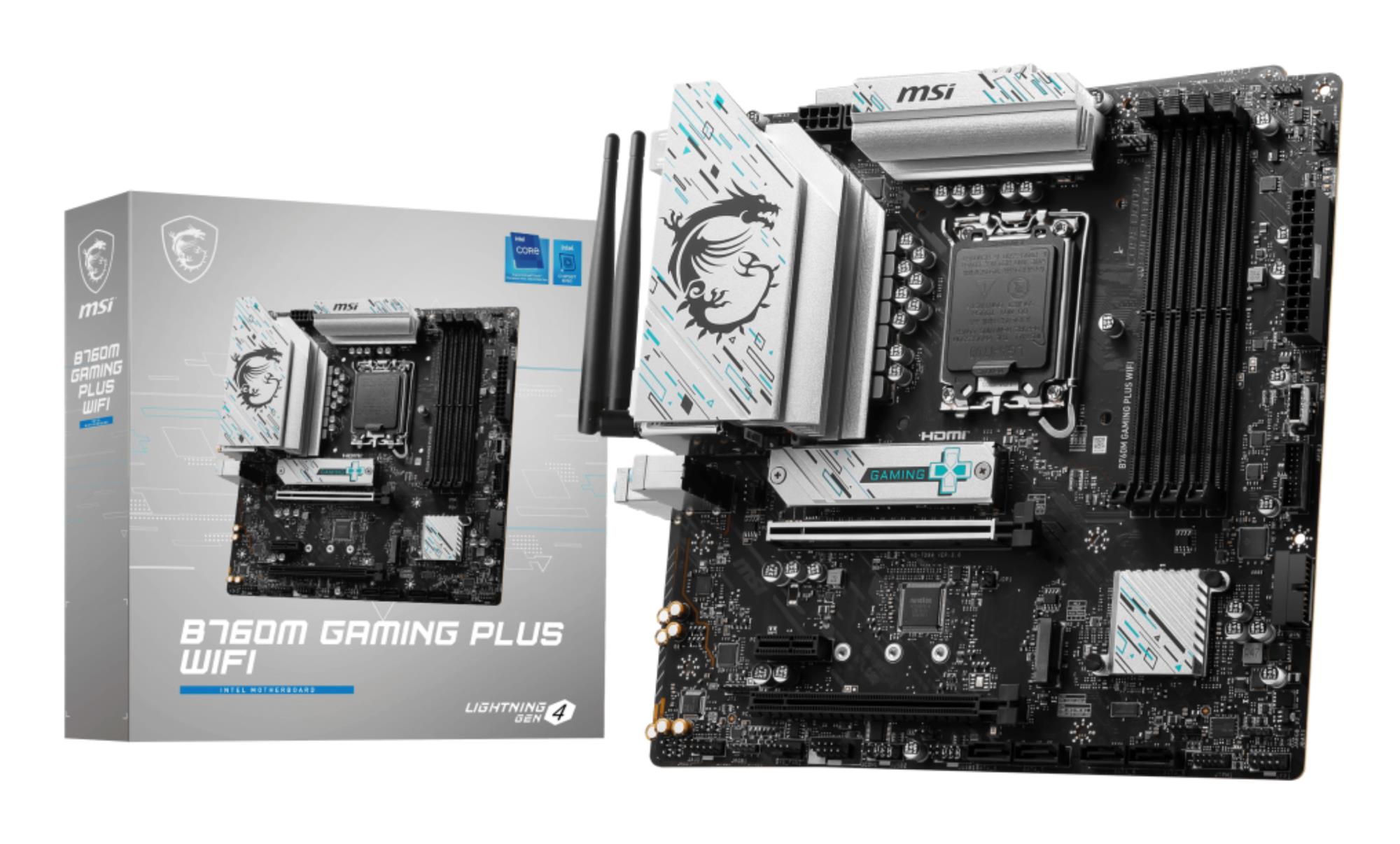

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|2xM.2|2xHDMI|2xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B760MGAMINGPLUSWIFI

149€

4711377154017

23 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

SummaryMSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepagehttps://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Overview
Category CodeMBI
CnCode84733020
Unit Box Height0.055
Unit Box Length0.3
Unit Box Width0.0275
Motherboard chipsetIntel B760
Audio chipRealtek ALC897
Component forPC
Motherboard form factormicro ATX
Audio output channels7.1
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 10/Windows 11
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®/Intel® Pentium® Gold
Maximum number of SMP processors1
Supported processor socketsLGA 1700
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800
Supported memory clock speed (max)6800
Maximum internal memory192
Supported storage drive interfacesM.2,SATA III
RAID supportYes
RAID levels0/1/10/5
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
