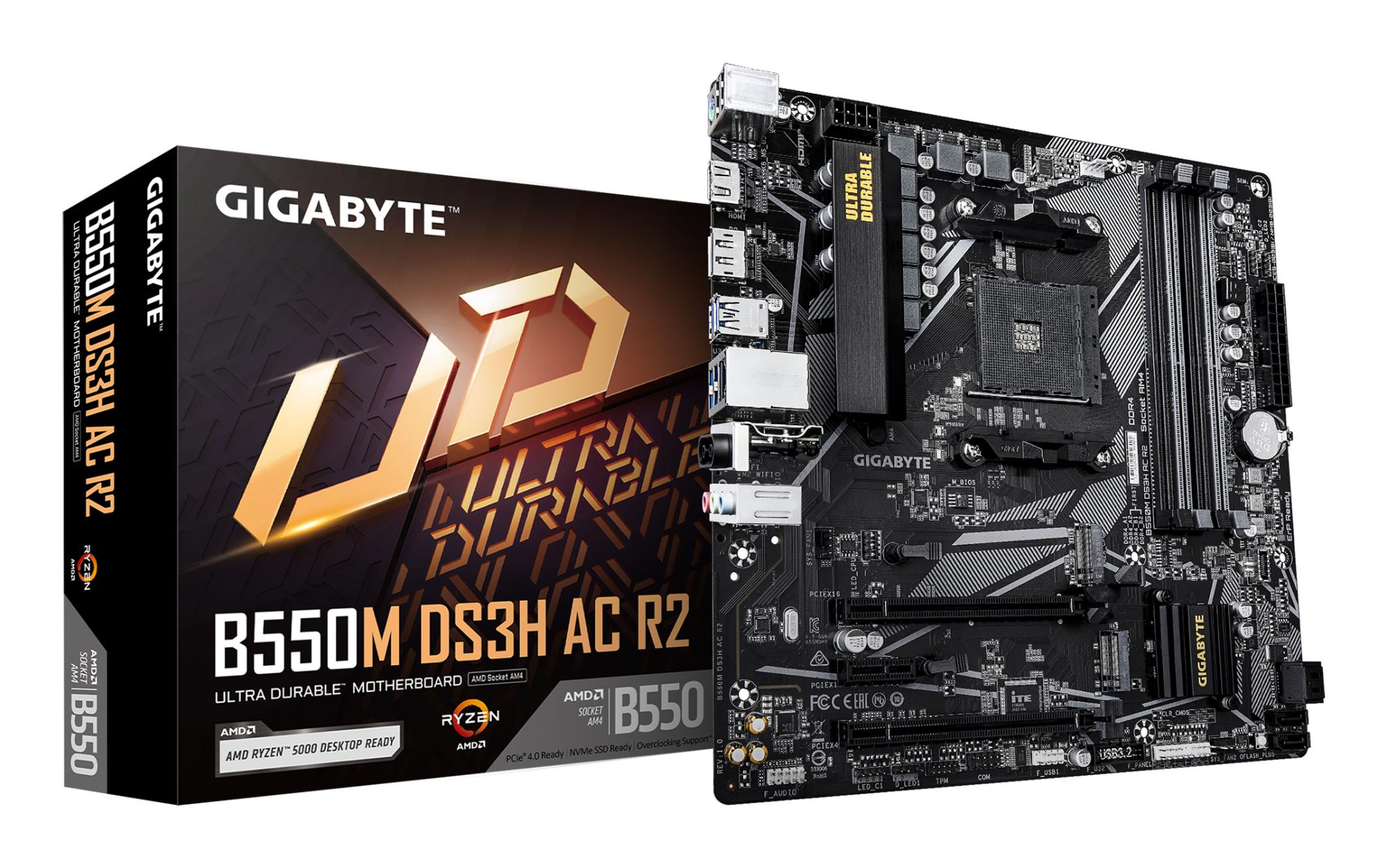

Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|GIGABYTE B550M DS3H AC R2|B550MDS3HACR2

96€

4719331869908

1 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

Материнська плата GIGABYTE B550M DS3H AC R2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital 5+3 phases VRM solution
  • Dual Channel DDR4: 4*DIMMs
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch: PCIe slots with Quick Release Design
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN & Wi-Fi 5
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

SummaryGIGABYTE B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Vendor Homepagehttps://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2
Category CodeMBA
CnCode84733020
Unit Box Height0.07
Unit Box Length0.27
Unit Box Width0.27
Motherboard chipsetAMD B550
Audio chipRealtek ALC1220-VB
Product colourDark brown
PC health monitoringFan/Temperature/Voltage
Component forPC
Motherboard form factormicro ATX
Audio output channels7.1
Cooling typePassive
Motherboard chipset familyAMD
Power source typeATX
Windows operating systems supportedWindows 10 x64/Windows 11 x64
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Supported processor socketsSocket AM4
Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
Supported memory clock speed (max)4733
Maximum internal memory128
Unbuffered memoryYes
Maximum internal memory per slot32
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,PCI Express 3.0,PCI Express 4.0,SATA III
Number of HDDs supported4
