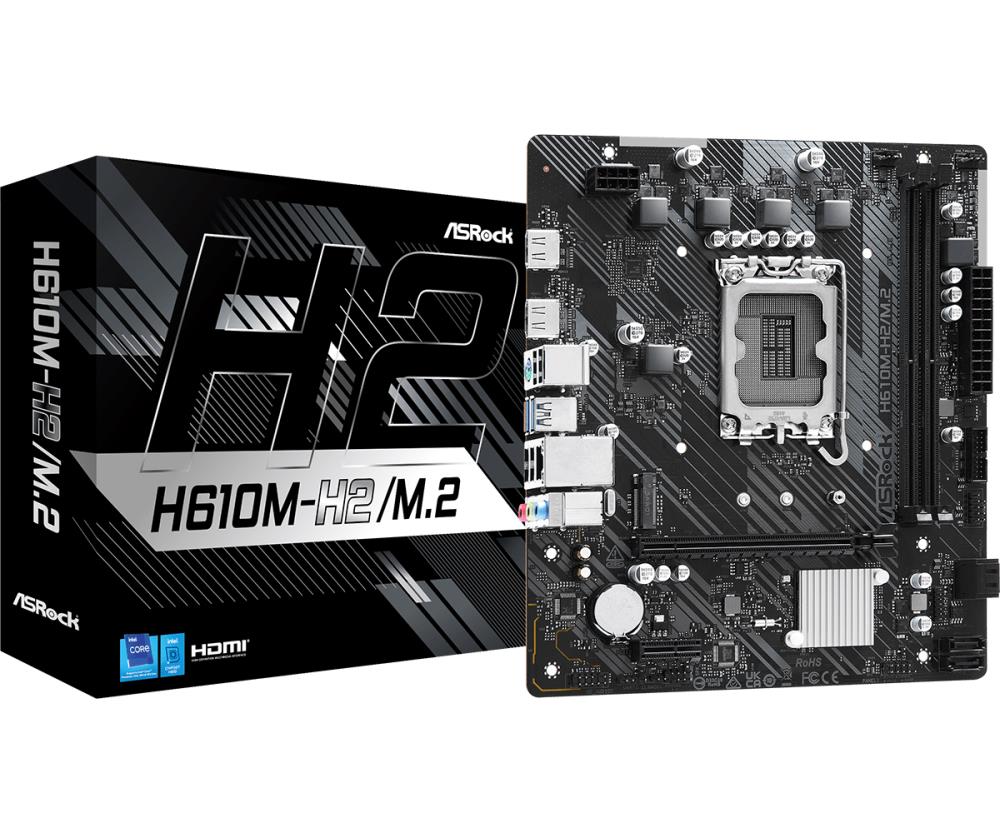

Mainboard ASROCK Intel H610 LGA1700 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 2xHDMI 4xUSB 2.0 2xUSB 3.2 1xPS/2 1xRJ45 3xAudio port H610M-H2/M.2

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!

Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 3+1+1 Phase Power Design
• 2 x DDR4 DIMMs
• Supports Dual Channel, up to 3200
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
