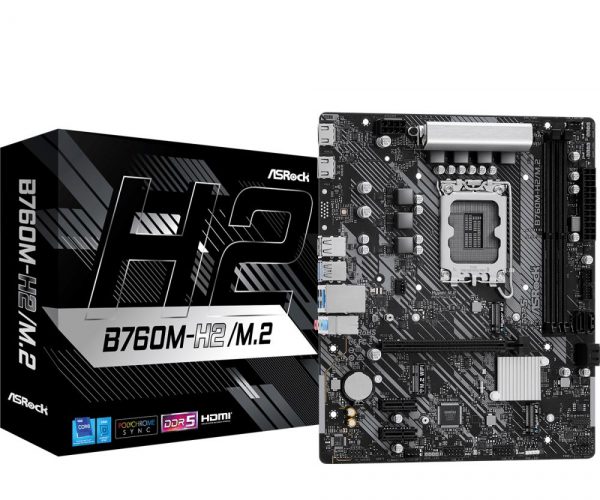

Mainboard ASROCK Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 2 2xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 3xM.2 2xHDMI 2xUSB 2.0 4xUSB 3.2 1xRJ45 3xAudio port B760M-H2/M.2

86€

B760M-H2/M.2

9 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Delivery by Omniva Parcel machine:€3.90
 Free shipping on all orders over €500
Monthly payment from 1.80 €
Minimum down payment from 0.00 €
ASROCK

Description

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase
  • 2 x DDR5 DIMMs
  • Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: 2 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
  • 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer

SummaryAsrock B760M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepagehttps://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp#Overview
Category CodeMBI
CnCode84733020
Unit Box Height0.24
Unit Box Length0.275
Unit Box Width0.065
Audio chipRealtek ALC897
Audio output channels7.1
Certification- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Component forPC
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64/Windows 11 x64
Compatible processor seriesIntel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
Maximum internal memory supported by processor128
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700
ECC сompatibilityNon-ECC
Maximum internal memory128
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speed (max)7200
Supported memory clock speeds5600/6800/7200
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Number of HDDs supported6
Number of storage drives supported4
RAID levels0/1/10/5
RAID supportYes
Supported storage drive interfacesM.2,SATA III

Brand

ASROCK
