I/O ADAPTER USB3.2 TO RJ45/M/F CAC-1520 CLUB3D

40,30€

8719214471248

4 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

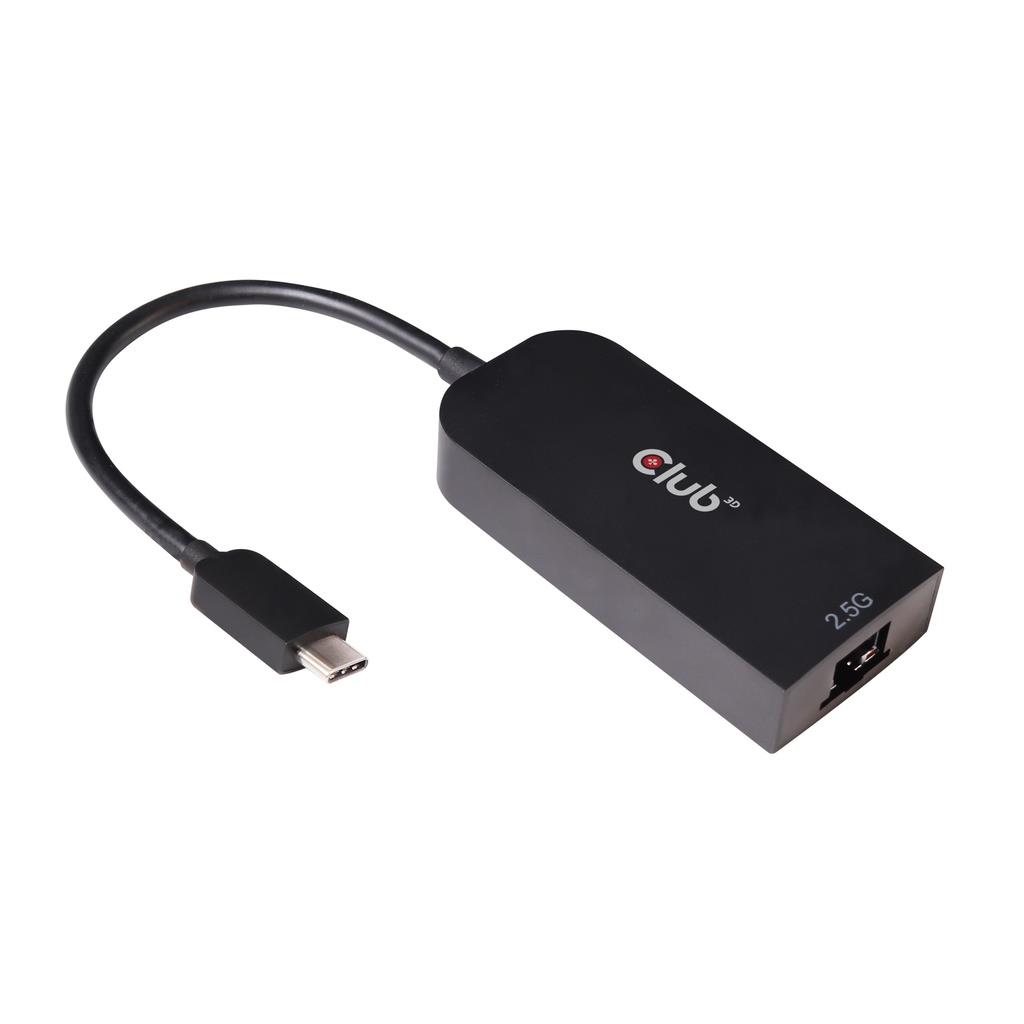

CAC-1520 - The Club 3D USB 3.2 Gen1 Type C to RJ45 2.5Gbps Ethernet Adapter. It enables a Fast Ethernet network connection capability for desktops, notebooks or ultrabooks with a standard USB 3.2 Gen 1 Type C port.

This adapter is the best solution for latest devices without an onboard Ethernet port.

Its the perfect accessory for your travels in addition its USB powered so no need for external power adapter.

  • Supports USB 3.2 Gen 1 Type C Port and 2.5Gbps RJ45 output
  • Supports 10M/100M/1G/2.5G Bandwidth
  • Supports twisted pair crossover detection and auto-correction
  • USB Bus power (No external Power Needed)
  • Supports USB3.2 Gen1, USB 2.0 and USB 1.1 ( When using lower USB versions the ethernet speed will be affected )
  • Supports WOL (Wake-On-Lan) Full Duplex Flow (10M / 100M / 1G / 2.5G Rate) Auto Negotiation
  • Supports Windows 8/Windows 10/ Mac OsX 10.6 to 10.13 Note : Driver Software installation is required
  • Power Consumption : 4.75V ~ 5.25V
  • Normal Operating power : < 80mA 10M < 130mA 100M <300mA 1G <460mA 2.5G

SummaryCLUB3D USB 3.2 Gen1 Type C to RJ45 2.5Gbps Adapter. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Certification: ROHS, FCC, and CE EMI requirements. Power source type: USB, Power connector: USB Type-C. Width: 35 mm, Depth: 240 mm, Height: 15 mm
Vendor Homepagewww.club-3d.com/en/detail/2468/usb_3.2_gen1_type_c_to_rj45_2.5gbps_adapter/
Category CodeNBK
CnCode84733080
Unit Box Height0.295
Unit Box Length0.095
Unit Box Width0.035
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Microphone inNo
DC-in jackNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000/2500
Card reader integratedNo
Product colourBlack
CertificationROHS, FCC, and CE EMI requirements
Power source typeUSB
Power connectorUSB Type-C
Wireless chargingNo
Windows operating systems supportedYes
Width35
Depth240
Height15
Weight34
Quantity per pack1
Package width260
Package depth95
Package height35
Package weight86
Paper/cardboard packaging weight56
Plastic packaging weight3
Total paper/cardboard packaging weight0
Total plastic packaging weight0
Harmonized System (HS) code8544 4290
