CABLE USB2 EXTENSION 12M/42782 LINDY
4002888427821
Delivery by courier: €5.90
Free shipping on all orders over €500

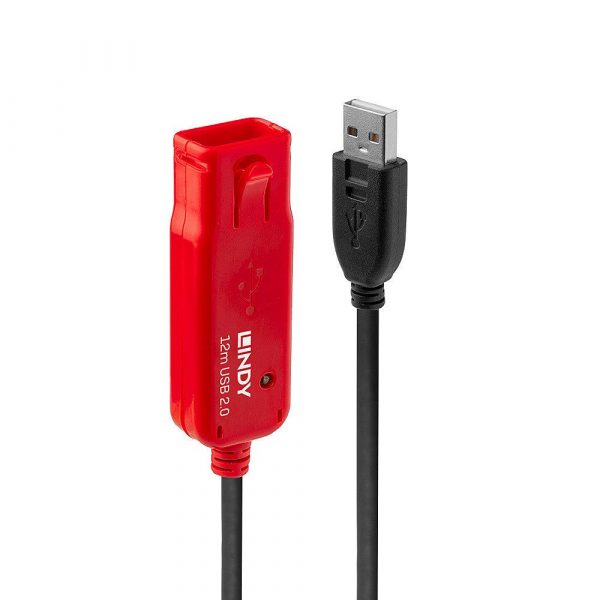

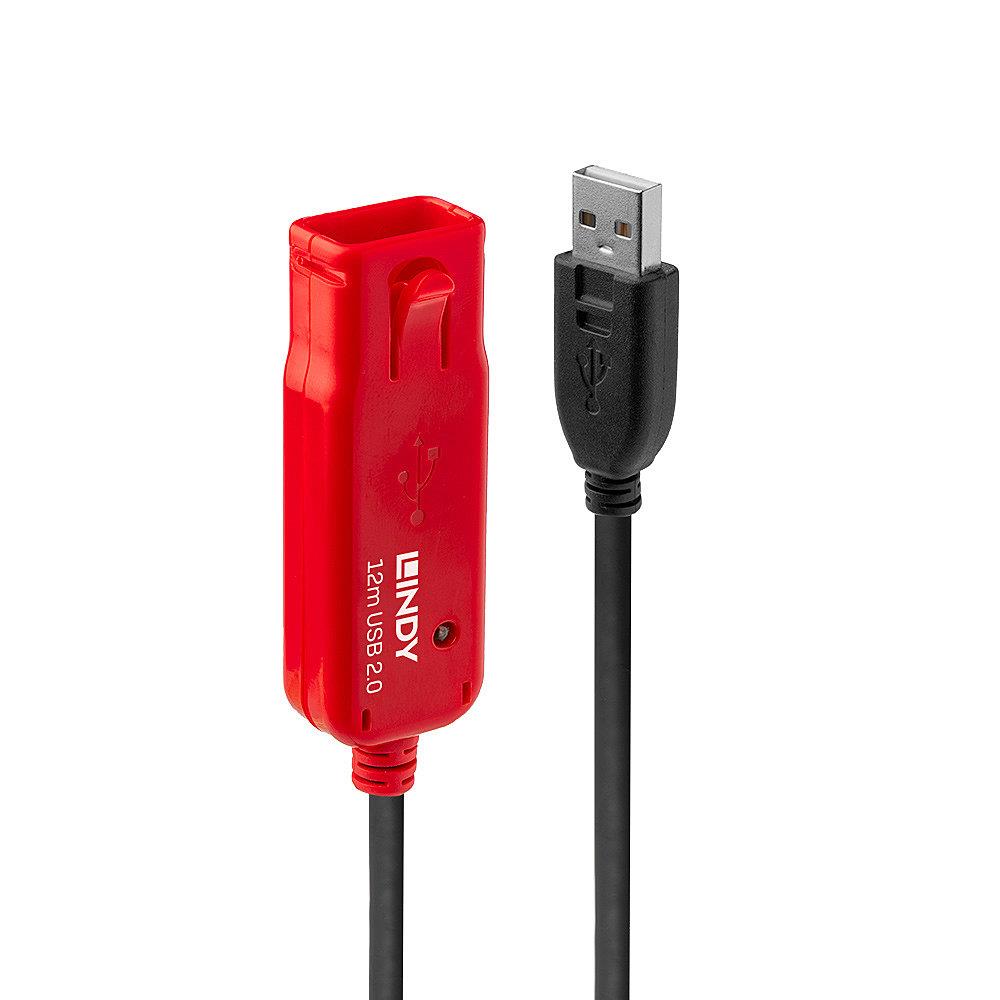

| Description | The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.
|
| Summary | Lindy 12m USB 2.0 Active Extension Pro. Cable length: 12 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Vendor Homepage | https://www.lindy.co.uk/usb-c4/12m-usb-2-0-active-extension-pro-p508 |
| Category Code | UCB |
| CnCode | 85444290 |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.2 |
| Cable length | 12 |
| Cable diameter | 5 |
| Weight | 420 |
| Bend radius (min) | 26 |
| Connector 1 dimensions (WxDxH) | 15 x 43 x 8 |
| Connector 2 dimensions (WxDxH) | 20 x 64 x 13 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/20 |
| Connector material | Gold/Nickel |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Maximum data transfer rate | 0.48 |
| Maximum data transfer rate | 480 |
| Cable type | Round cable |
| Product colour | Black |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB |
| Package type | Box |
