CABLE USB2 8M ACTIVE EXT. PRO/42780 LINDY

33,70€

4002888427807

3 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

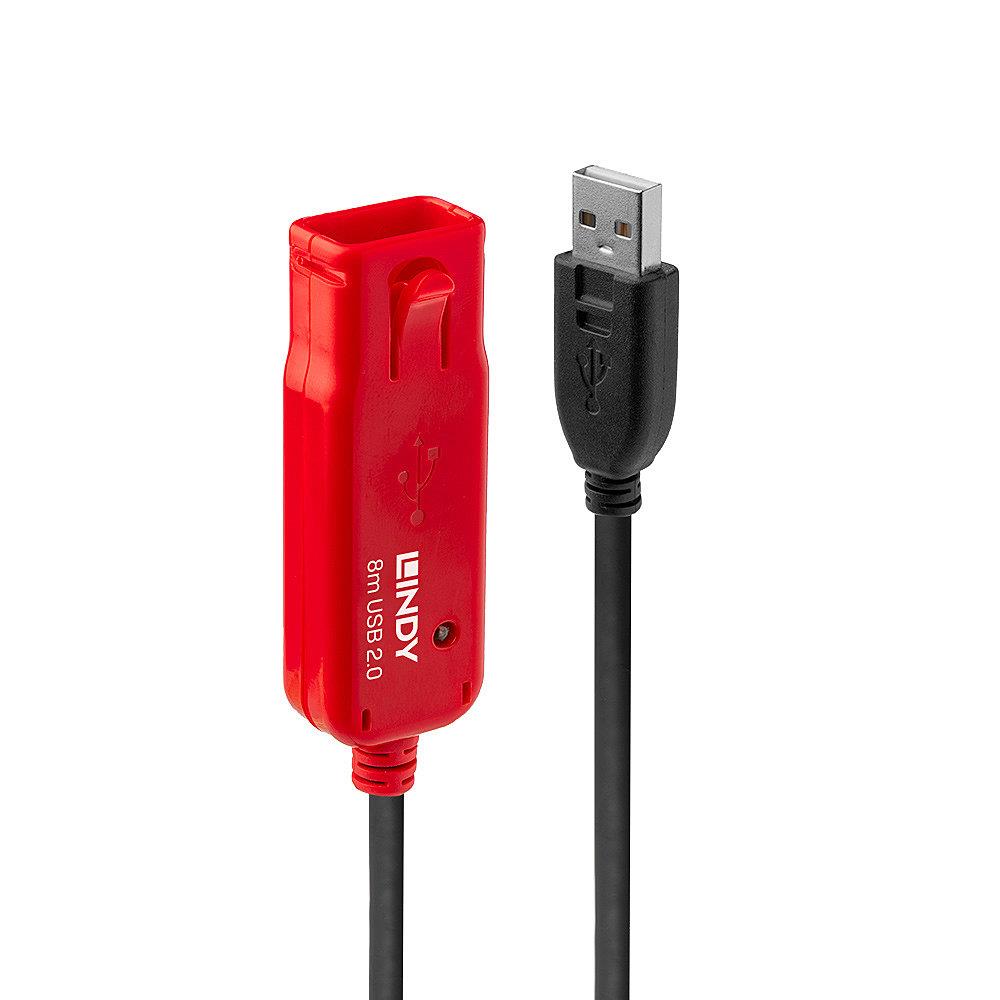

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

  • High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
  • Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
  • USB Type A Male to A Female – connects to the deviceandrsquo;s existing USB cable (2m maximum)
  • 2 year warranty

SummaryLindy 8m USB 2.0 Active Extension Pro. Cable length: 8 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Connector contacts plating: Gold, Product colour: Black
Vendor Homepagehttps://www.lindy.co.uk/usb-c4/8m-usb-2-0-active-extension-pro-p496
Category CodeUCB
CnCode85444290
Unit Box Height0.065
Unit Box Length0.238
Unit Box Width0.2
Cable length8
Cable diameter5
Weight280
Bend radius (min)26
Connector 1 dimensions (WxDxH)15 x 43 x 8
Connector 2 dimensions (WxDxH)20 x 64 x 13
USB versionUSB 2.0
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size26/20
Connector materialGold/Nickel
Contact materialBrass
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shield materialAluminium
Connector shieldingYes
Connector housing materialPlastic
Maximum data transfer rate480
Cable typeRound cable
Product colourBlack
Transmission mediumTwisted pair
Nominal attenuation(0.064 MHz, -0.08 dB) (0.256MHz, -0.11 dB) (0.512MHz, -0.13 dB) (0.772 MHz, -0.15 dB) (1 MHz, -0.2 dB) (4 MHz, -0.39 dB) (8 MHz, -0.57 dB) (12 MHz, -0.76 dB) (24 MHz, -0.95 dB) (48 MHz, -1.35dB) (96 MHz, -1.9 dB) (200 MHz, -3.2 dB) (400 MHz, -5.8 dB)
Package typeBox
