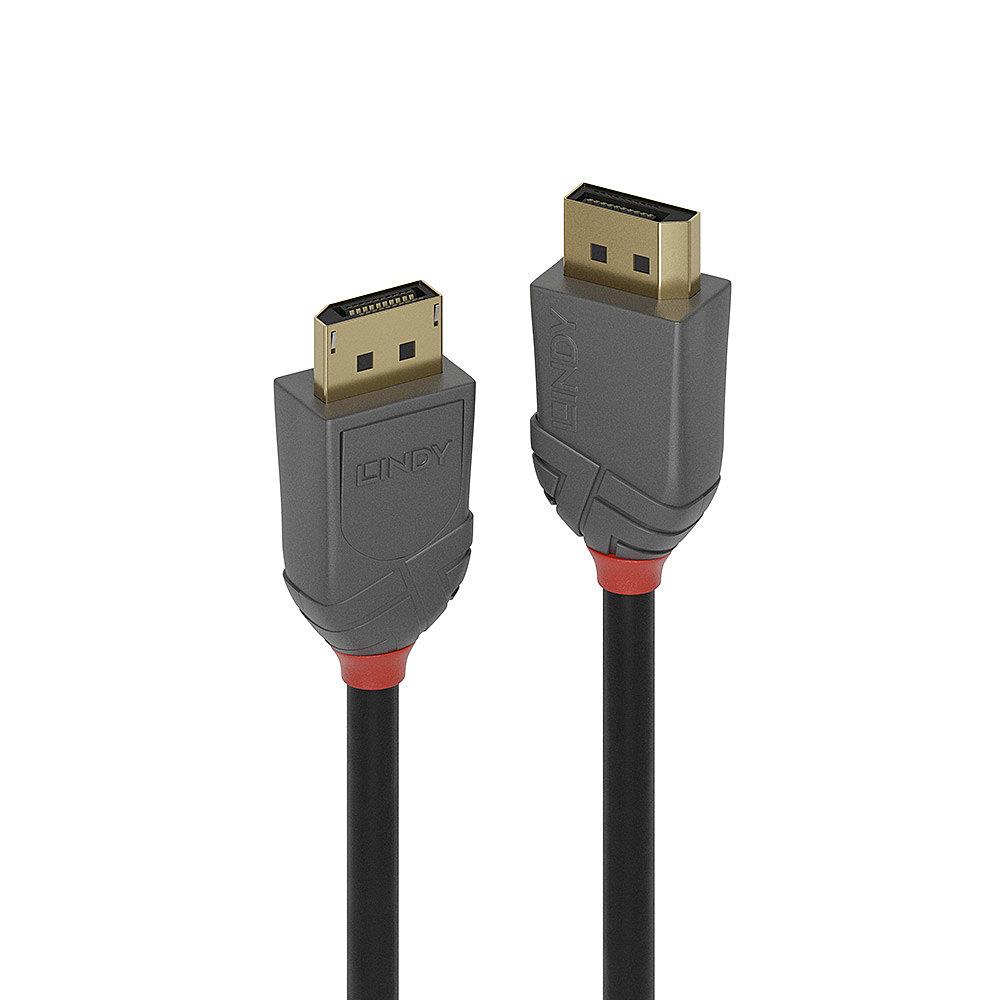

CABLE DISPLAY PORT 1M/ANTHRA 36481 LINDY

9,88€

4002888364812

39 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.

  • Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
  • Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
  • Robust ABS housing 24K gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
  • DisplayPort 1.4, 32.4Gbps; 10 year warranty

SummaryLindy 1m DisplayPort 1.4 Cable, Anthra Line. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
Vendor Homepagehttps://www.lindy.co.uk/cables-adapters-c1/audio-video-c107/1m-displayport-1-4-cable-anthra-line-p11070
Category CodeCDP
CnCode85444290
Unit Box Height0.025
Unit Box Length0.145
Unit Box Width0.145
Connector 1DisplayPort
Connector 1 genderMale
Connector 1 form factorStraight
Connector 2DisplayPort
Connector 2 genderMale
Connector 2 form factorStraight
Connector contacts platingGold
Cable length1
DisplayPort version1.4
Maximum resolution7680 x 4320
Supported graphics resolutions4096 x 2160/7680 x 4320
Maximum refresh rate60
Product colourBlack/Grey
Cable materialTinned copper
Cable shieldingCopper
Jacket materialPolyvinyl chloride (PVC)
Connector housing materialAcrylonitrile butadiene styrene (ABS)
AWG wire size28
Data transfer rate32.4
Connector materialGold
Contact materialPhosphor bronze
Plug and PlayYes
Cable typeRound cable
Colour sampling4:2:2
Nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operating temperature (T-T)-20 - 80
Storage temperature (T-T)-25 - 85
CertificationRoHS, REACH, UL
