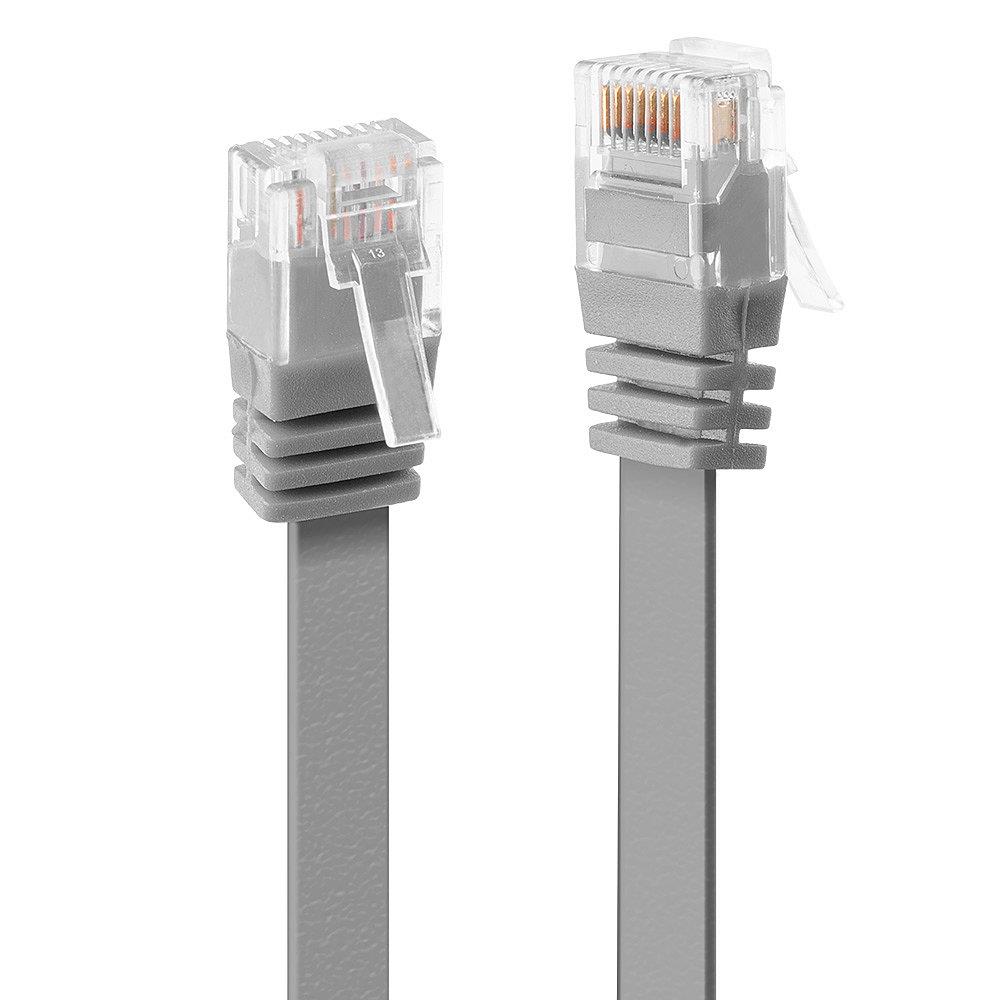

CABLE CAT6 U/UTP 3M/GREY 47493 LINDY

3,81€

4002888474931

25 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

Cat.6 U/UTP flat network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, Flat
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss

SummaryLindy 3m Cat.6 U/UTP Flat Network Cable, Grey. Cable length: 3 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Grey
Vendor Homepagehttps://www.lindy.eu/3m-Cat-6-U-UTP-Flat-Network-Cable-Grey.htm?websale8=ld0101.ld021102&pi=47493&ci=8002
Category CodeCBL
CnCode85444290
Unit Box Height0.01
Unit Box Length0.1
Unit Box Width0.1
Cable length3
Cable standardCat6
Cable shieldingU/UTP (UTP)
Product colourGrey
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector contacts platingGold
Jacket materialPolyvinyl chloride (PVC)
Conductor materialCopper
AWG wire size32
Frequency250
Bend radius (min)60
Operating temperature (T-T)-10 - 60
Storage temperature (T-T)-10 - 40
CertificationRoHS, REACH, UL, California Proposition 65
Connector 1 dimensions (WxDxH)11.6 x 22.7 x 6.5
Connector 2 dimensions (WxDxH)11.6 x 22.7 x 6.5
Package typePolybag
Harmonized System (HS) code84733080
Unit Calculated Weight0.06
Product Net Weight0.05
Units per Shipping Box1
Unit Width10
Unit Depth10
Unit Height1
Unit Calculated Volume0.0001
