ANTENNA MOBILE/GNSS/WIFI ROOF/COMBO MIMO PR1KCO28 TELTONIKA

56€

4779051840977

9 in stock
 Estimated Delivery: Up to 2-3 business days
 Delivery by courier: €5.90
 Free shipping on all orders over €500

Description

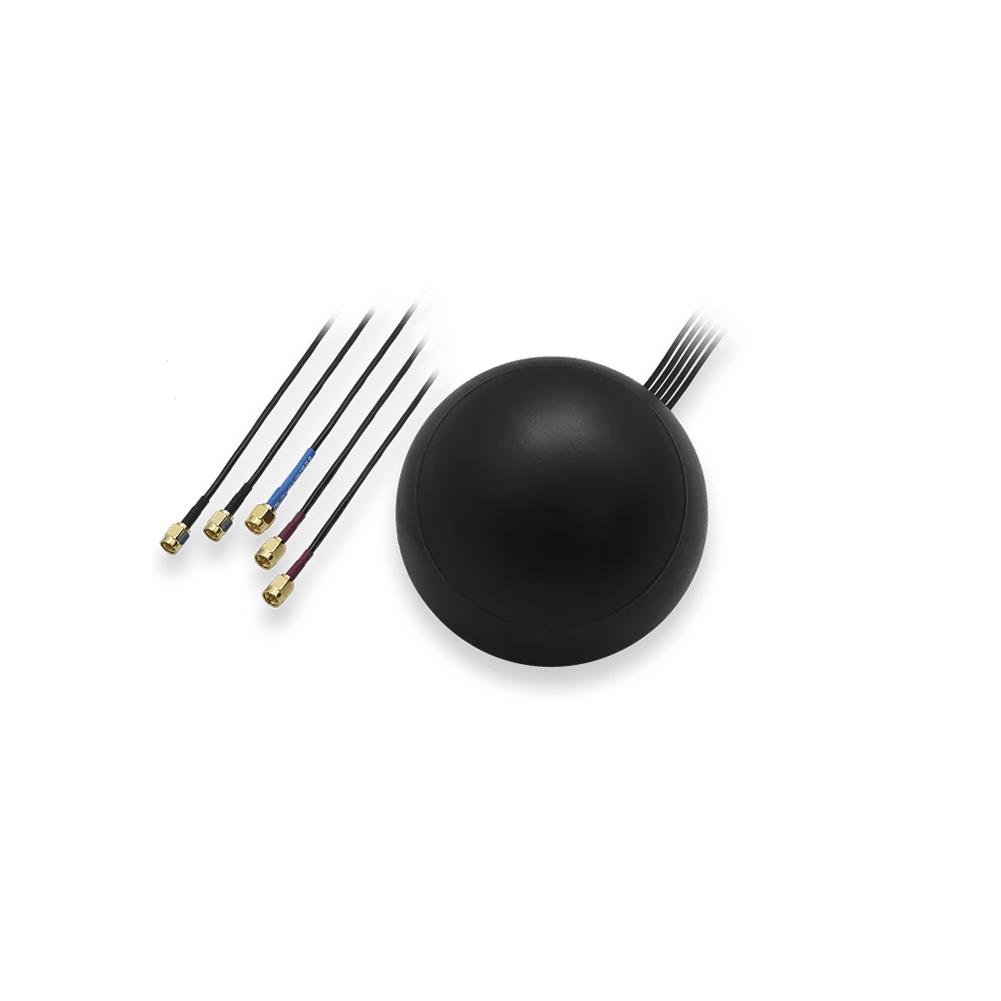

Teltonika Combo LTE/ GPS/ Wi-Fi antenna
The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.

  • Frequency range 1575.42-1610 MHz
  • Polarisation RHCP
  • Impedance 50 Ω
  • LNA reinforcement 28±2 dB
  • LNA Noise Figure < 1.5 dB
  • Supply voltage 3-5 V DC
  • Power consumption < 15 mA
  • LNA V.S.W.R. < 2.0
  • Connector Male SMA

SummaryTeltonika PR1KCO28. Antenna gain level (max): 28 dBi, Frequency band: 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 GHz, Antenna gain (2.4 GHz): 2 dBi. Antenna type: MIMO directional antenna, Antenna connector type: SMA/RP-SMA, Connector gender: Female/Female. Power consumption: 15 mA, Input voltage: 3-5 V. Compliance certificates: RoHS. Height: 55 mm, Diameter: 11 cm, Weight: 550 g
Vendor Homepagehttps://www.batna24.com/en/p/teltonika-003r00253-combo-antenna-rmmnq
Category CodeWAE
CnCode85177100
Unit Box Height0.12
Unit Box Length0.125
Unit Box Width0.125
Frequency band1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825
Antenna gain (2.4 GHz)2
Antenna gain (5 GHz)2
Impedance50
Antenna gain level (max)28
Antenna typeMIMO directional antenna
Antenna connector typeSMA/RP-SMA
Connector genderFemale/Female
PolarizationLinear polarization
Voltage Standing Wave Ratio (VSWR)2/2.5/3
Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
International Protection (IP) codeIP67
Cable length3
Cable type5x RG174
Input voltage3-5
Power consumption15
Compliance certificatesRoHS
Height55
Diameter110
Weight550
Harmonized System (HS) code85177100
Unit Calculated Weight0.535
Product Net Weight0.535
Units per Shipping Box1
Unit Width12.5
Unit Depth12.5
Unit Height12
